| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Color | Black,Green |
| Condition | New |
| Application | Industrial |
| Size | 500x500x15mm |
| Country of Origin | India |
| Thickness | 15mm |
| Max Withstanding Temperature | -20 To +70 |
| Material Available | Nitrile Rubber, Cork, Synthetic Fibre |
| Working Temp Range DegreeC | -20 To +70 |
| Load (Kg/ Sq Cm) | 03-09Kg/ Sq Cm |
| Natural Frequency (Hz) | 18-35 Hz |
| Shore A Hardness | 90-92 |
| Coeff. Of Friction | 0.9 |
| Series | DU |
| Warranty | 1 |
| Material | Rubber |
| Feature | Best Quality, Easy To Use, Fine Finish, Good Strength |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 2-3 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.
Tool room machine, plastic injection moulding machines, pressure die casting machines, printing and textile machine (For Machine
having high axial forces).
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | Made In India |
| Size | 500x500x10mm |
| Thickness | 10mm |
| Color | Green |
| Type | Vibration Insulation Sheet |
| Material Available | Nitrile Rubber, Cork, Synthetic Fibre |
| Max Withstanding Temperature | -20 To +70 |
| Working Temp Range DegreeC | -20 To +70 |
| Load (Kg/ Sq Cm) | 03-09 |
| Natural Frequency (Hz) | 18-35 Hz |
| Shore A Hardness | 90-92 |
| Coeff. Of Friction | 0.9 |

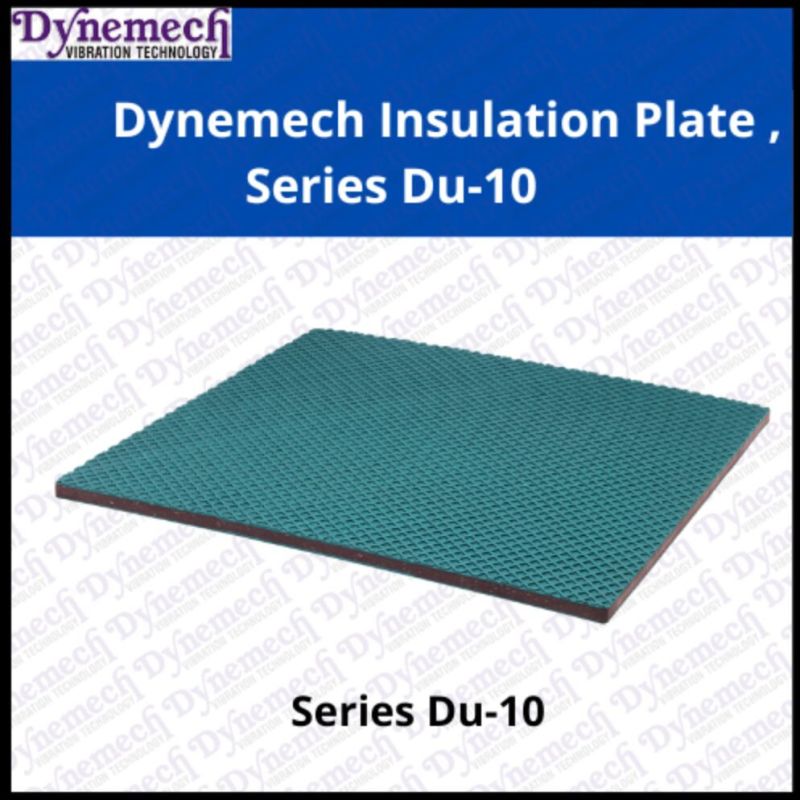

| Series | DU 10 |
Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.
Note- GST and Freight Charges are not included.
