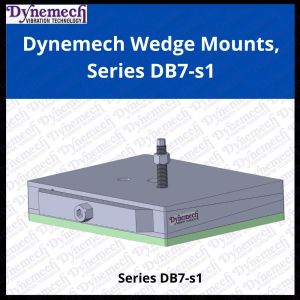

Dynemech Industrial Machinery Anti Vibration Mount Series DB7s1

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor. These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Model Load Capacity Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm)

DB0-s1 500 100 100 58

DB1-s1 600 115 115 64

DB2-s1 1000 150 150 70

DB3-s1 1800 200 200 70

DB4-s1 2200 200 250 90

DB5-s1 3500 250 320 95

DB6-s1 5200 300 400 95

DB7-s1 9500 400 500 100

Note- GST and Freight Charges are not included.
