Anti Vibration Mounts

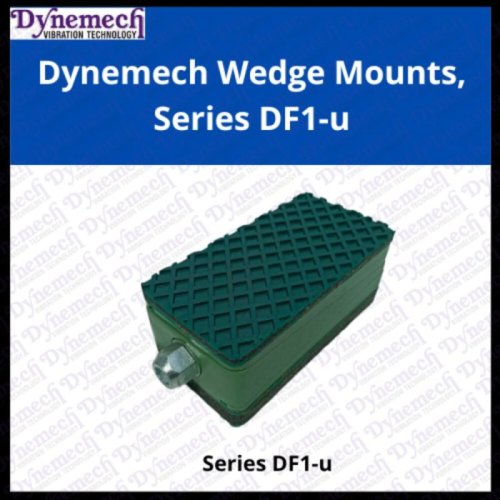

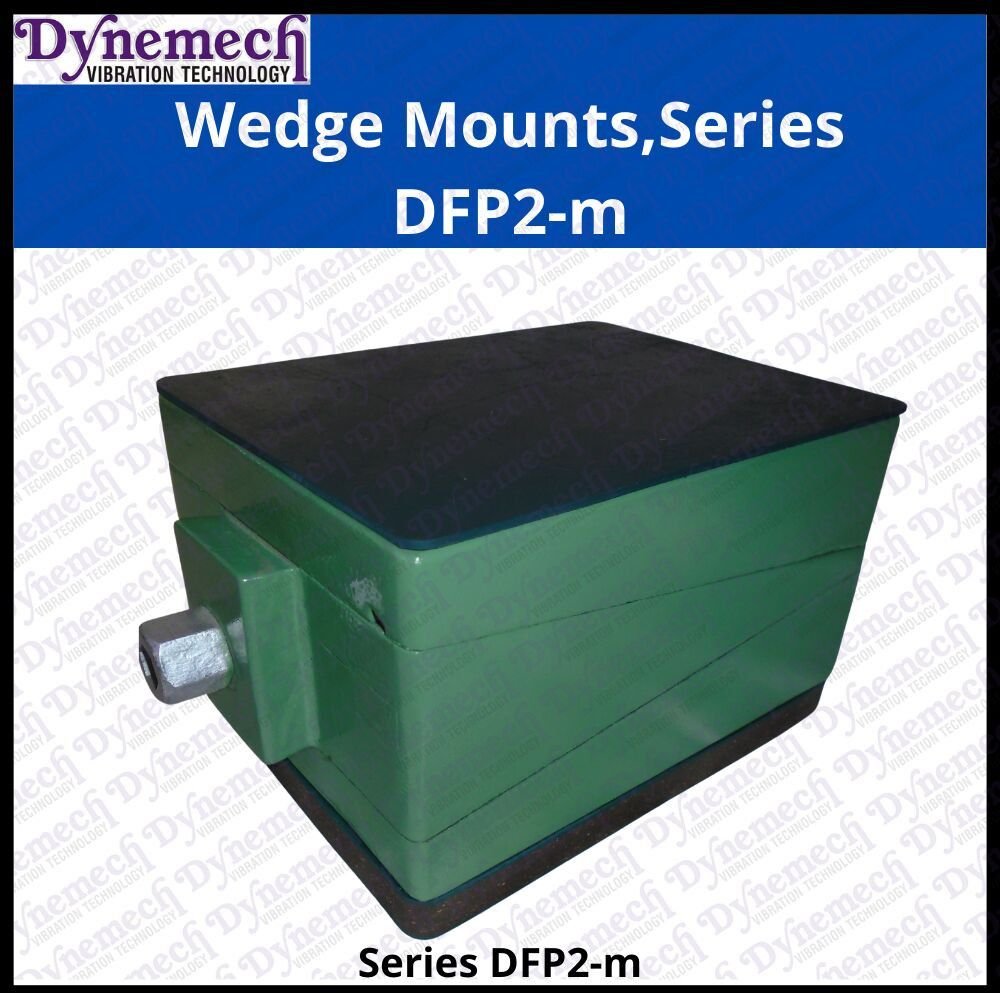

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates. Applications- Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Note- GST and Freight Charges are not included.

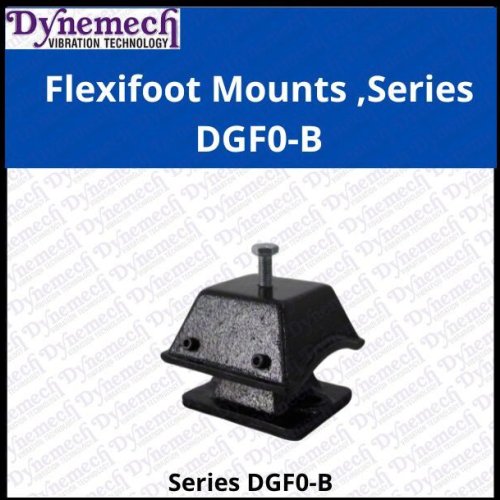

Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces. Applications: Generators, Blowers, Pumps, ID & FD Fans, Cooling Towers, etc.

Note- GST and Freight Charges are not included.

 The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. screw support mounts series DLK-4 are suitable for heavy machine installations. they provide additional damping in shear and radial directions.

Note- GST and Freight Charges are not included.

Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates. Dynemech Wedge Mounts, Series DFP, Wedge Mounts- Free Standing-DF-HEIGHT -100/150MM Dynemech Wedge Mounts, Series DFP, Wedge Mounts- Free Standing-DF-HEIGHT -100/150MM Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc.

Note- GST and Freight Charges are not included.

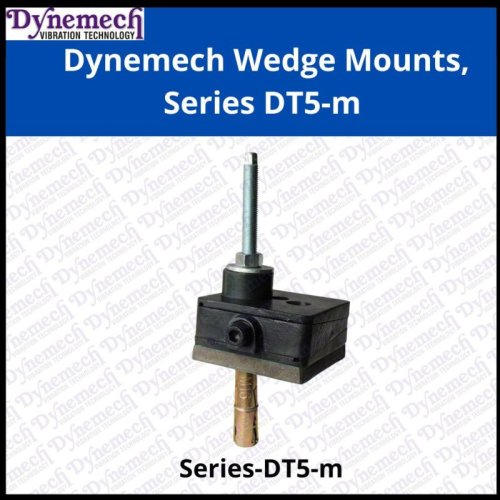

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications: Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc. Application: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. Dynemech Systems offers Anti Vibration Pad for reducing the vibration and sound in all industrial vibrating machinery. We are specializing in the area of anti vibration pads. Dynemech Systems is the best source for finding anti vibration pads. We provide one stop solution for all your vibration control needs.

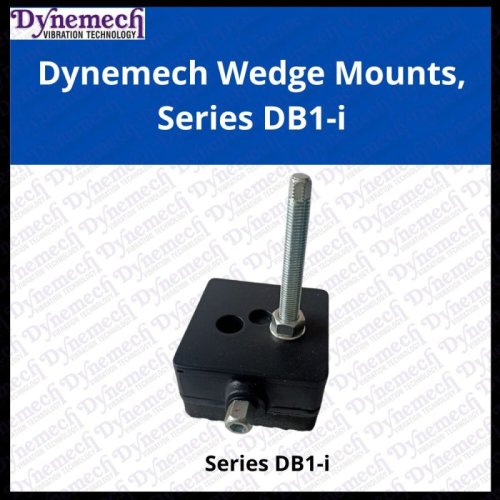

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor. These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine. Applications- Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Note- GST and Freight Charges are not included.

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. Application -Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

Note- GST and Freight Charges are not included.

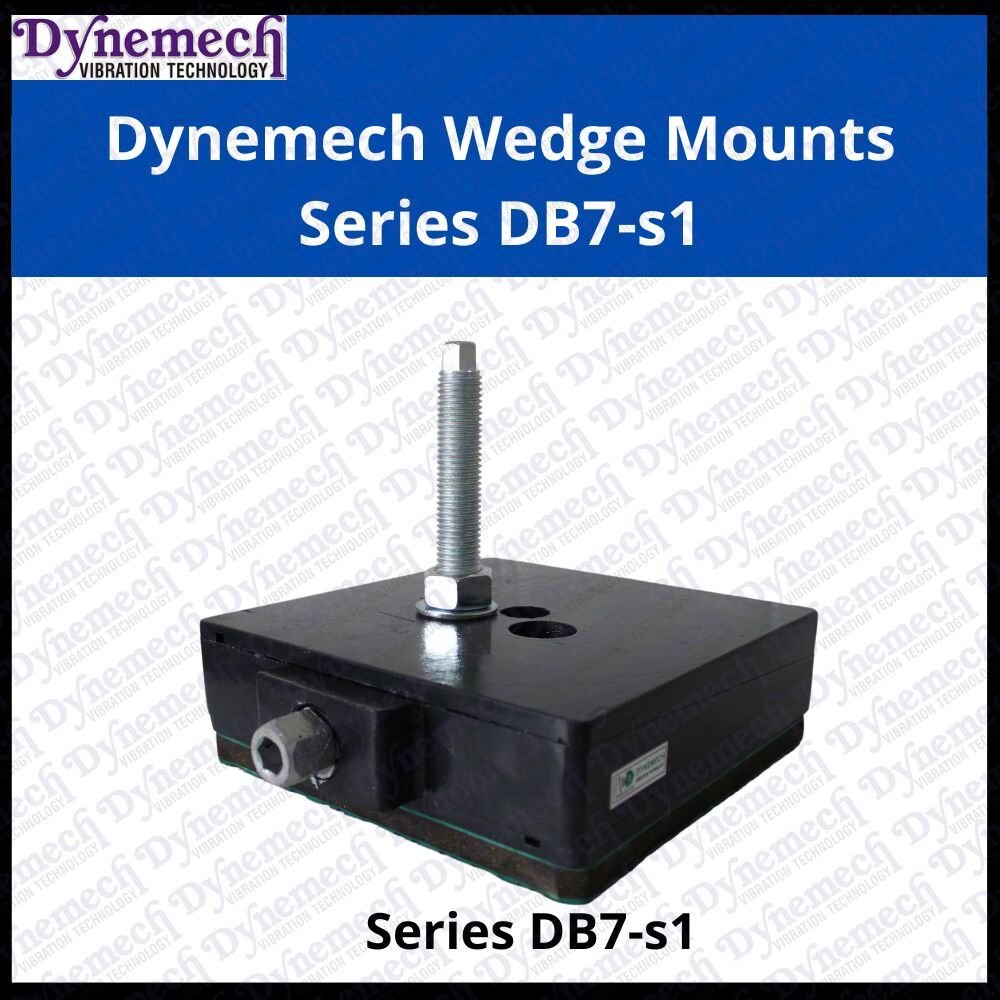

Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor. These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.

Model Load Capacity Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm)

DB0-s1 500 100 100 58

DB1-s1 600 115 115 64

DB2-s1 1000 150 150 70

DB3-s1 1800 200 200 70

DB4-s1 2200 200 250 90

DB5-s1 3500 250 320 95

DB6-s1 5200 300 400 95

DB7-s1 9500 400 500 100

Note- GST and Freight Charges are not included.

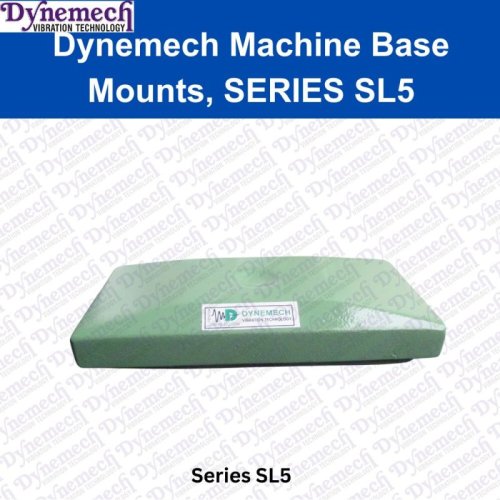

 Dynemech Machine base mounts series SL5-P1 is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.

Length – 80(mm) To 200(mm),  Width – 64(mm) To 200(mm),  Height- 30(mm) To 39(mm)

Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc

Natural Frequency (Hz):18 Hz To 7 Hz

Coeff. of Friction: 0.9 To 0.8

Working Temp Range °C: -16 to 90

Weight ( Kg.):0.5 Kg To 2.5 Kgs

Material: Cast Iron, Rubber

Colour: Green

Note- GST and Freight Charges are not included.

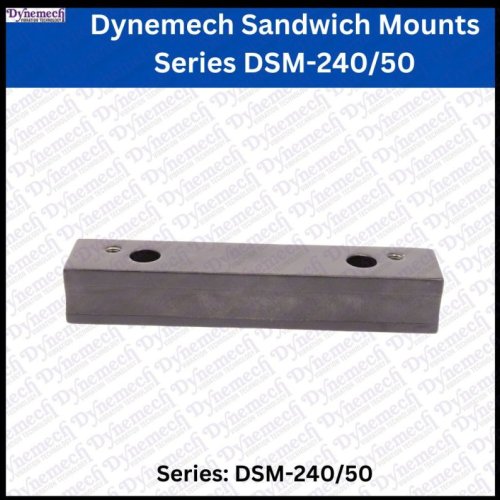

Dynemech Sandwich Mounts Series DSM-240/50 are available in various standard and customized sizes. These mounts provides support to motors, pumps and equipment installed on a machine body. These mounts provides high vibration isolation efficiency. Model: DSM-240/50. Dynemech Systems offers Anti Vibration Pad for reducing the vibration and sound in all industrial vibrating machinery. We are specializing in the area of anti vibration pads. Dynemech Systems is the best source for finding anti vibration pads. We provide one stop solution for all your vibration control needs.

Note- GST and Freight Charges are not included.

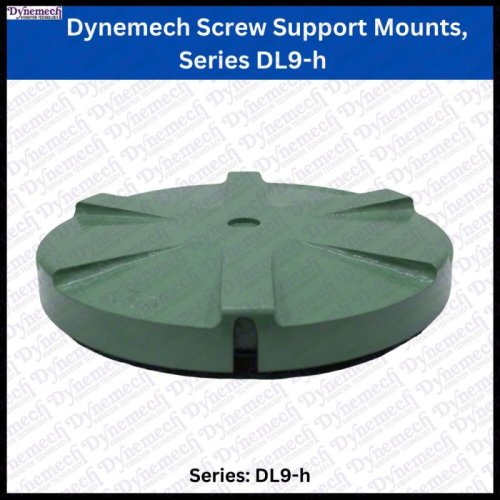

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance. Heavy & Long bedded Machine, Long Machining Center, Heavy Grinding Machine etc. Heavy & Long bedded Machine, Long Machining Center, Heavy Grinding Machine etc.

Note- GST and Freight Charges are not included.

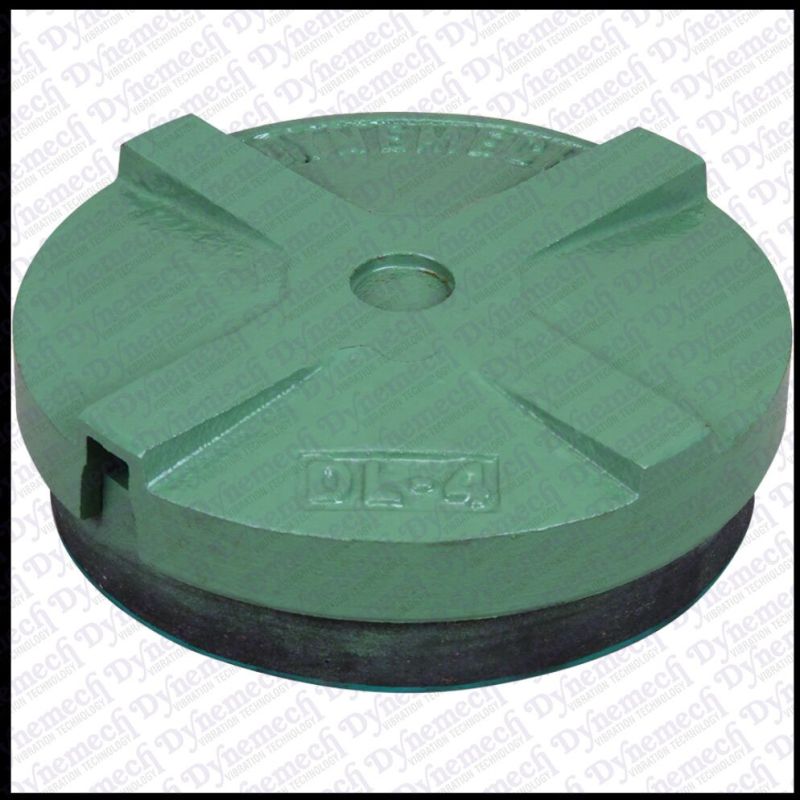

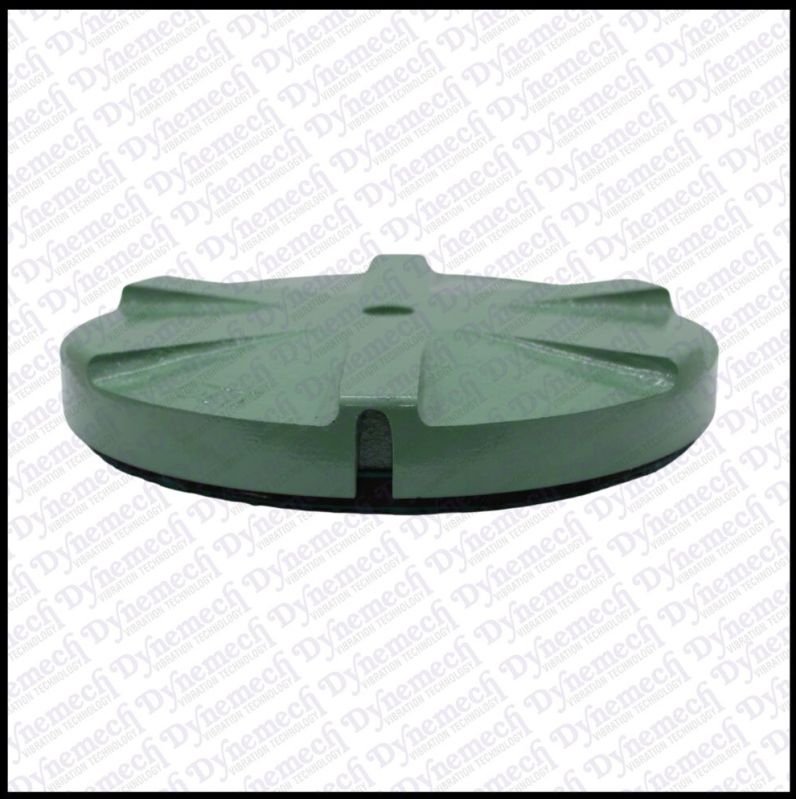

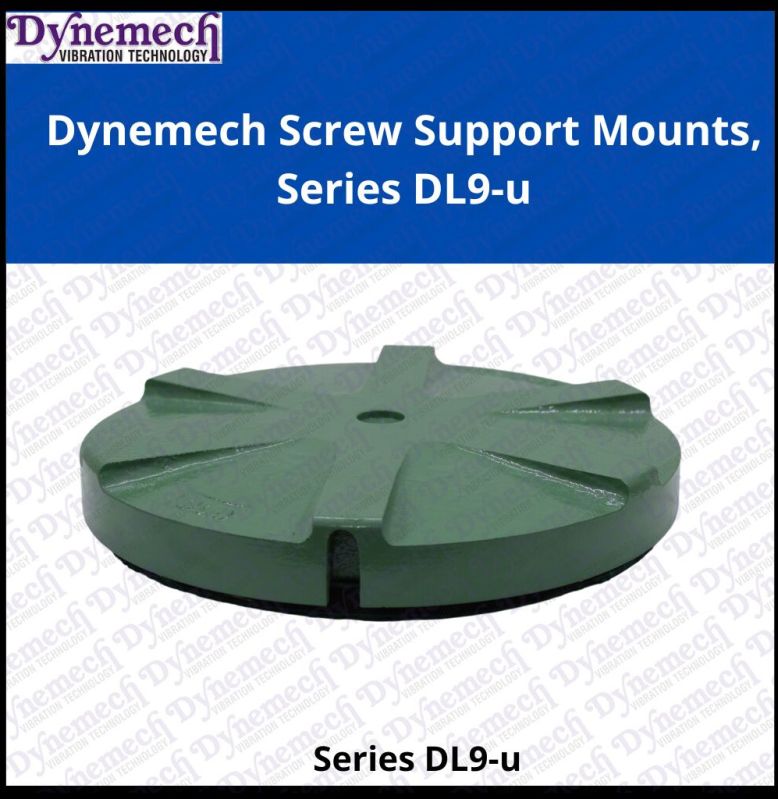

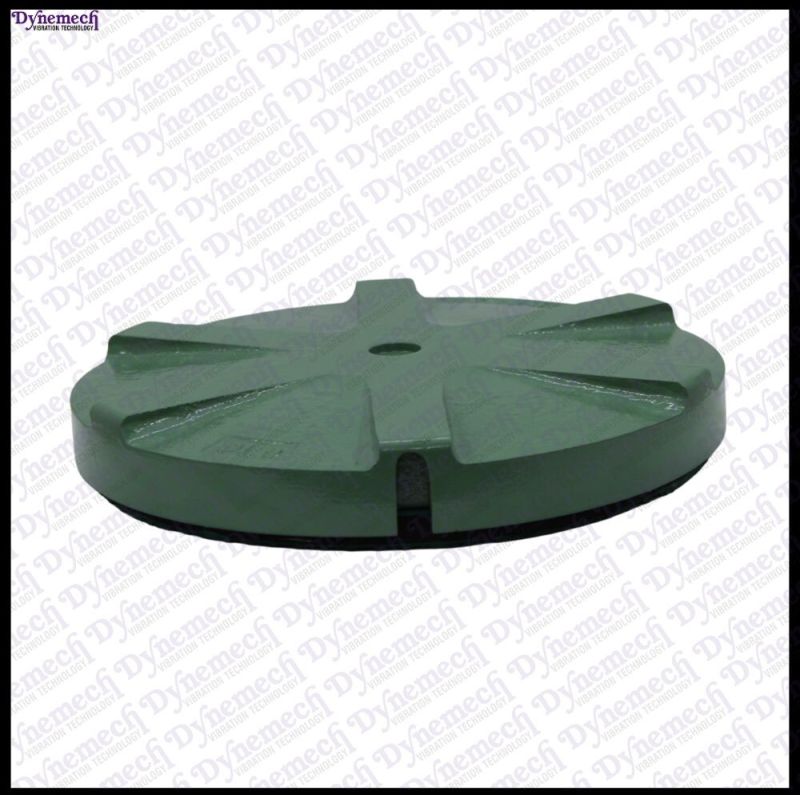

Dynemech DL Series AV mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS Series AV Mounts, developed in stainless steel finds application in pharmaceutical food and beverages processing and packaing units, medical equipment manufacturing and chemical processing industries.Provide vibration isolation with complete hygienic seal and corrsion resistance.

Size :Dia-276(mm), Height-43(mm)

Load Capacity (Kg.):4200 Kg/pc

 Natural Frequency (Hz):18

Coeff. of Friction:0.9

Working Temp Range °C:-16 to 90

Weight ( Kg.):14

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.

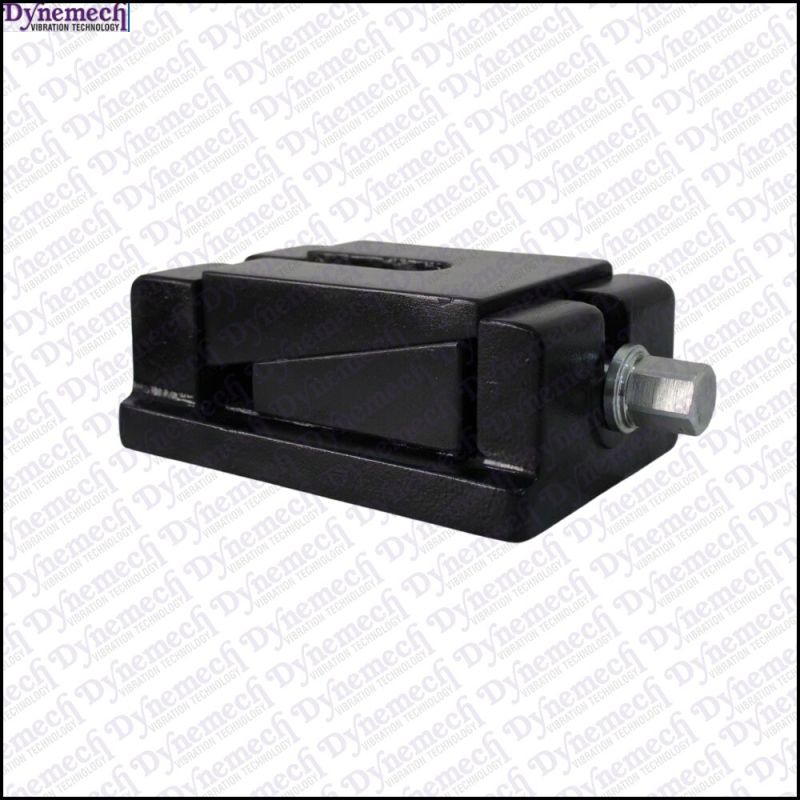

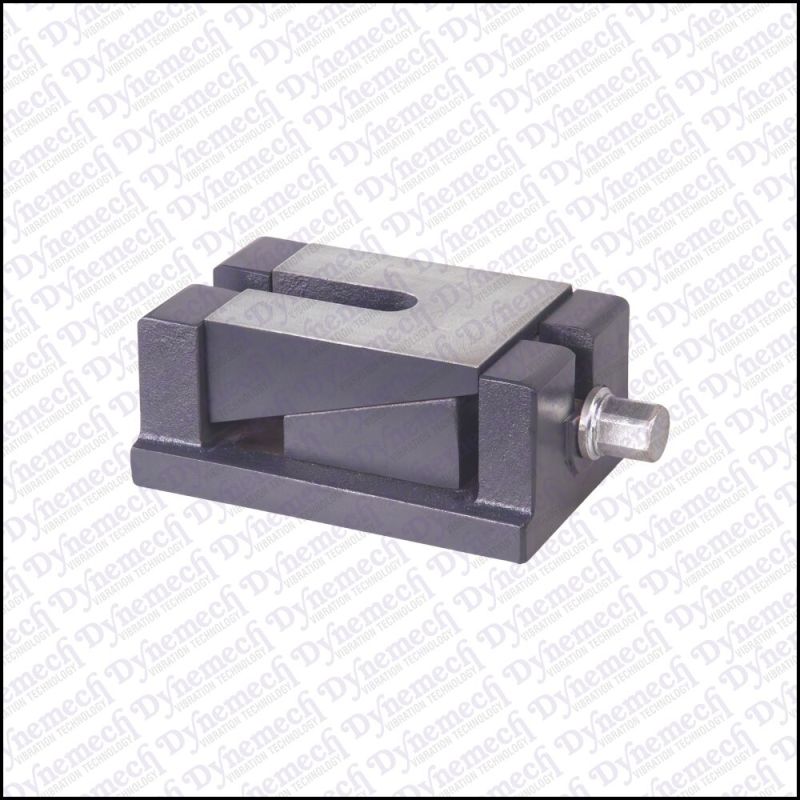

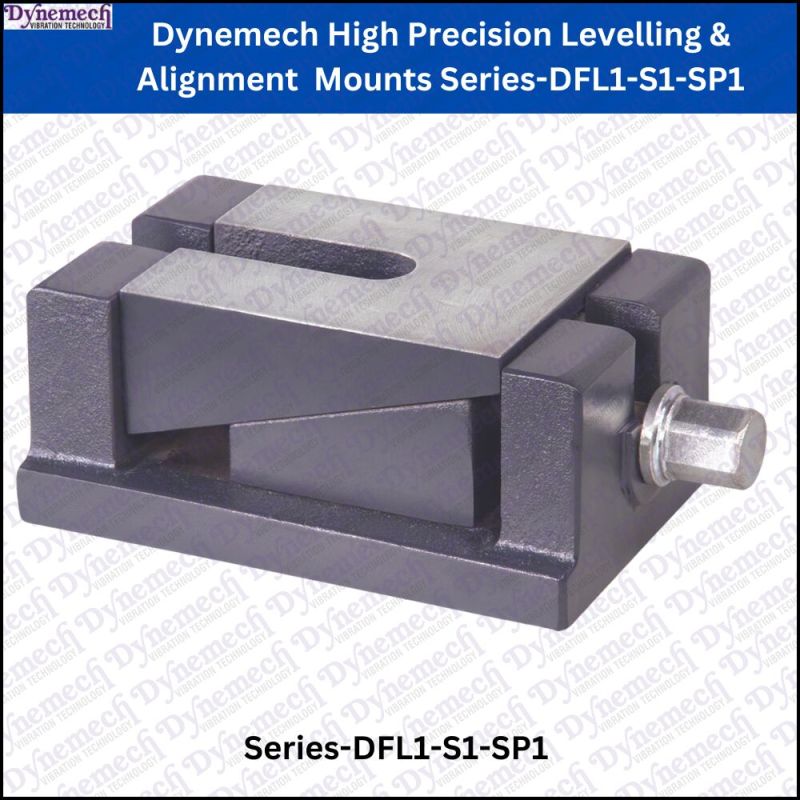

Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Length:207(mm)

Width:142(mm)

Height:86(mm)

 Load Capacity: 8000 Kg

Natural Frequency (Hz):N/A

Coeff. of Friction: N/A

Working Temp Range : N/A

4 Nos Weight ( Kg.): 53 kg

Material: Cast Iron

Colour: Green/Dark Grey

 4 Nos Box Size:13"X8"X7

 4 Nos of Boxes: 2

Production Capacity: 100-150 set per month

 Surface Finishing: Painted

     Max. Torque value(N.m): 454

Adjustment Range(mm): 13

Delivery Time: 4-5 Days

Note- GST and Freight Charges are not included.

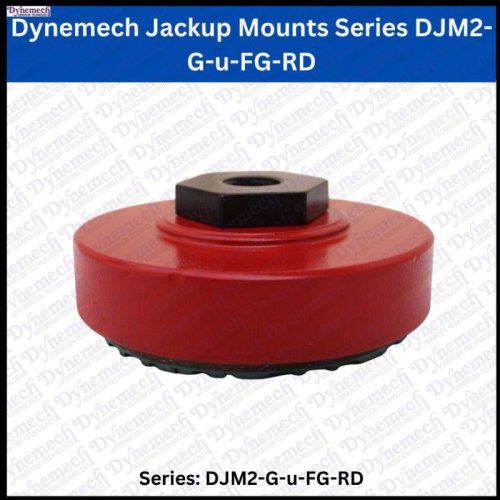

Dynemech Jackup mounts DJM-2 provides isolation solutions for various machines and mounting conditions. The Dynemech Jackup mounts also provides for high machine leveling capabilities. These Jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the Jackup mount. The Jackup mount also provide very good passive vibration isolation. Dia D(mm):- 90mm To 160mm                                       Height H(mm):-49mm To 49mm                                    G(mm): M20x2.5                                                          Thread Length:38mm                                                        To M20x2.5mm                                                         Thread Length:38mm                                                   HEX SW(mm): 46(mm) To 62(mm)                              Load Capacity:850Kg/pc To 2500Kg/pc                    Levelling Adjustment(mm):18 mm To 18 mm                      Natural Frequency Range Hz: 18(Hz) To 18(Hz)                Coeff. of Friction: 0.9 To 0.9                                           Weight ( Kg.):1.5 Kgs To 5 Kgs                                  Working Temp Range: -16 to 90

Material :  Cast Iron, Rubber

Colour: Red Price-2270

Note- GST and Freight Charges are not included.

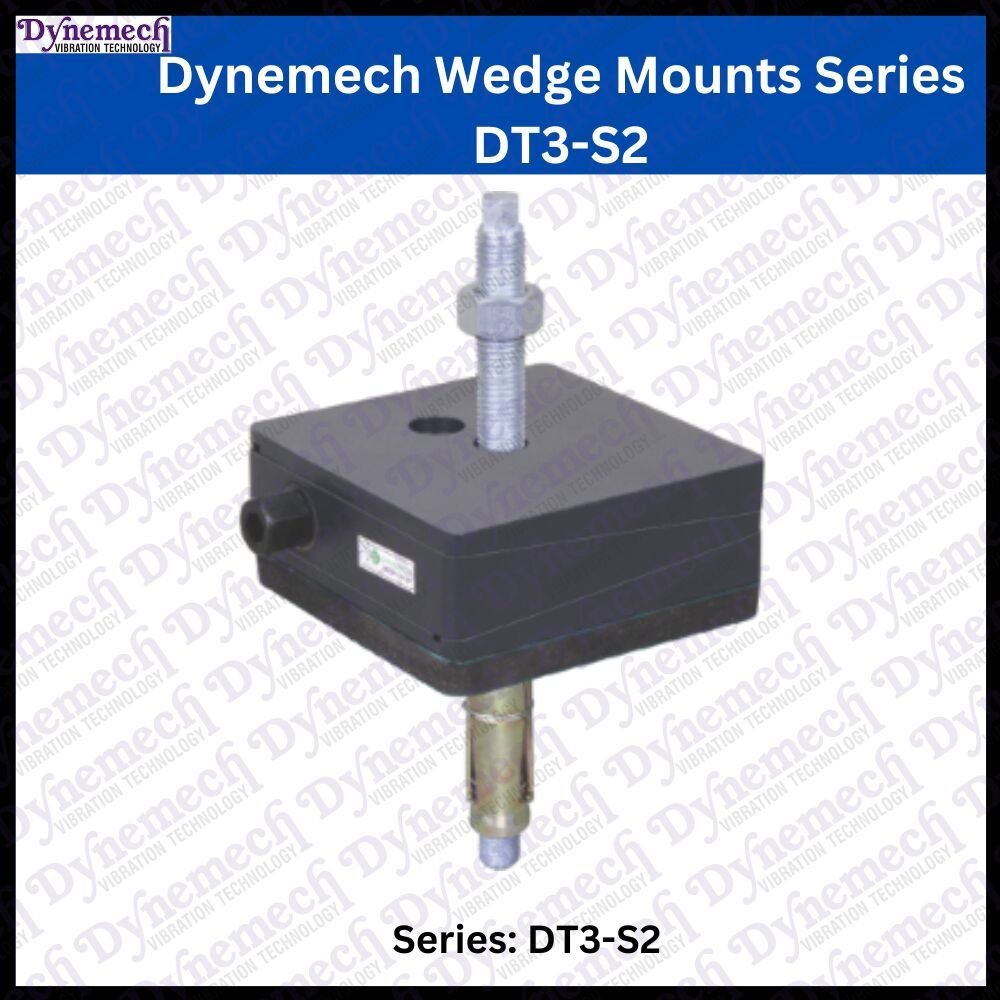

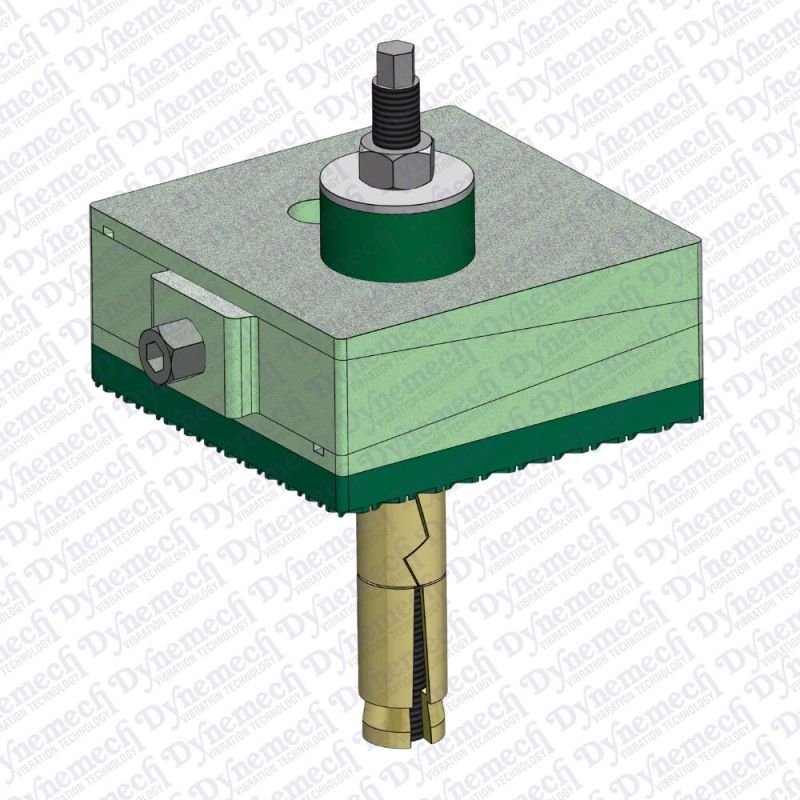

Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.• Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.Dynemech Wedge Mounts, Series DT are designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Range of Applications:Drilling and milling machines, machining centres, special machines, long lathes, long planers, power presses etc.

Note- GST and Freight Charges are not included.

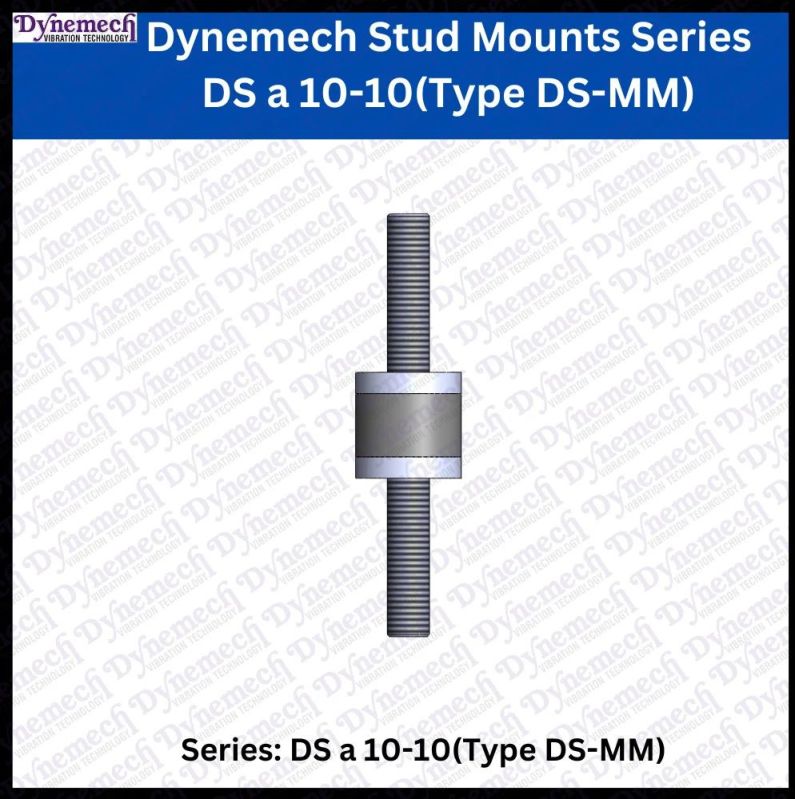

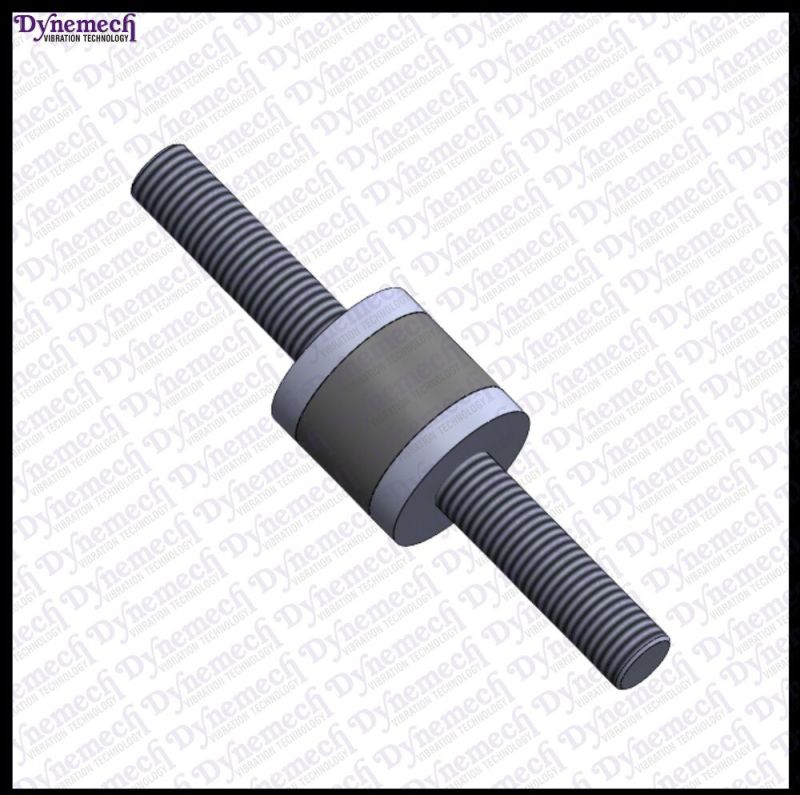

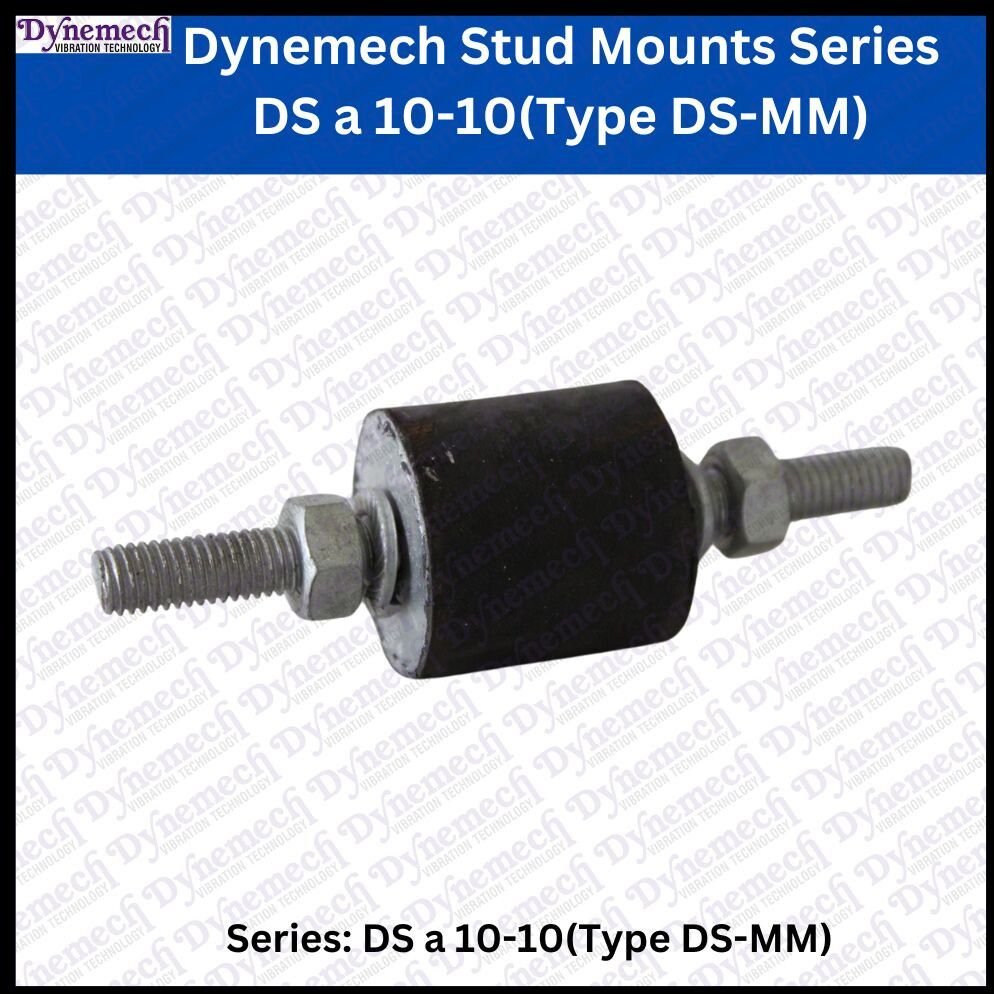

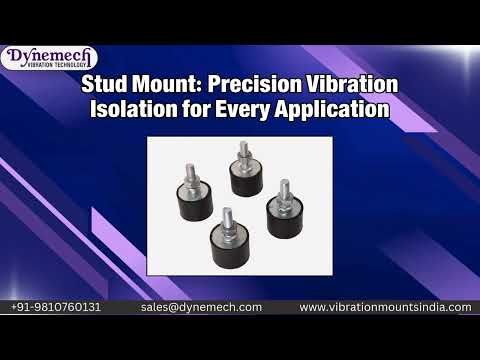

Dynemech Stud Mounts, Series DS are highly effective and compact vibration dampers for a varity of applications like- Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipment / Instruments, Material Handling Equipment, Laboratory etc. These mounts can be used for load applications in both compression and shear.

Model: DS a 10-10 Load (Kg): 2Kgs to 20500Kgs Height: (10 to 125)mm Dia (mm): (10 to 250)mm Length: (16 to 80)mm G Thread: (M4 to M24) Natural Frequency (Hz): (12 to 8)Hz Thickness: 10 mm to 125mm Hardness: (40-45)mm to (90-92)mm Material: Low Carbon Steel(IS 2062), Neoprene and Nitrile Colour: Silver/Black Surface Finishing: Painted/Power Coated Temperature: (-20 to +70°C) 4 Nos. Weight: 50 gm Delivery Time: 1/2 day No. of Boxes: 1 Box Dimension: 2"x2"x2" Production Capacity: 300 pieces per day Price Range: Rs.140/- per piece

Note- GST and Freight Charges are not included.

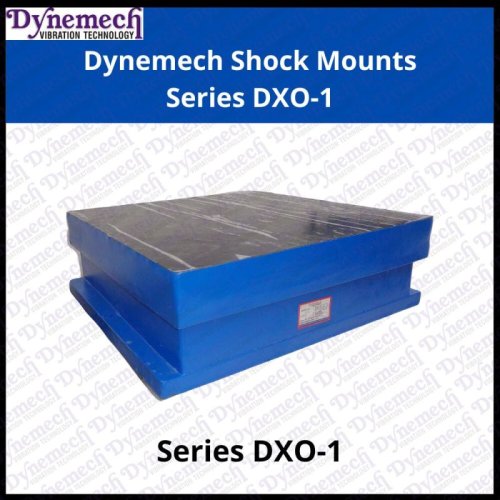

Dynemech DXO Mounts are suitable for very heavy presses. These mounts are also customized to cover the complete base area of the machine. These mounts provides High Shock Isolation.

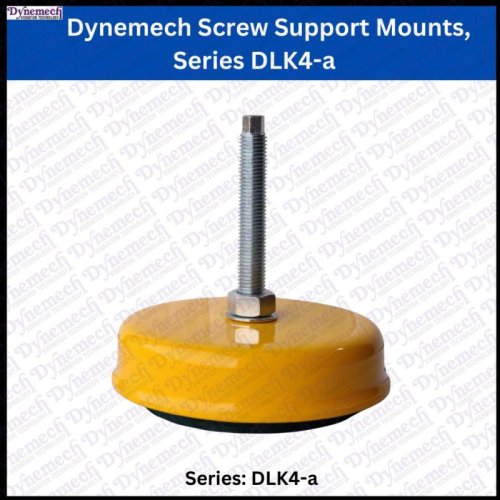

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.

Size :Dia-238(mm), Height-80(mm)

Load Capacity (Kg.):4000 Kg/pc

Bolt Size: M24X3.0X150mm

Adjustment

range (mm):20

Working Temp Range °C:-From -15 to 80

Weight ( Kg.):8 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Red powder coating

Note- GST and Freight Charges are not included.

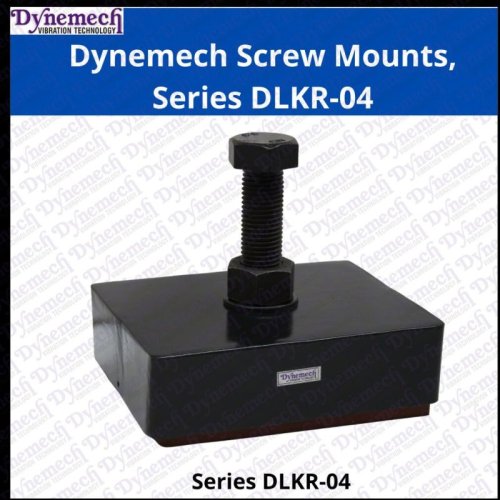

DLKR mounts provides a large rectangular surface to support machines along with the levelling adjustment. The longer side is installed parallel to the line of operation of the horizontal force generated by the machine thus ensuring better grip and higher shock isolation. DLKR mounts are suitable for machines which generate high vertical and horizontal forces and have a plain hole in the base. APPLICATIONS-Plastic Injection Moulding Machines, Pressure Die casting Machines, Lathe Machines etc.

Note- GST and Freight Charges are not included.
