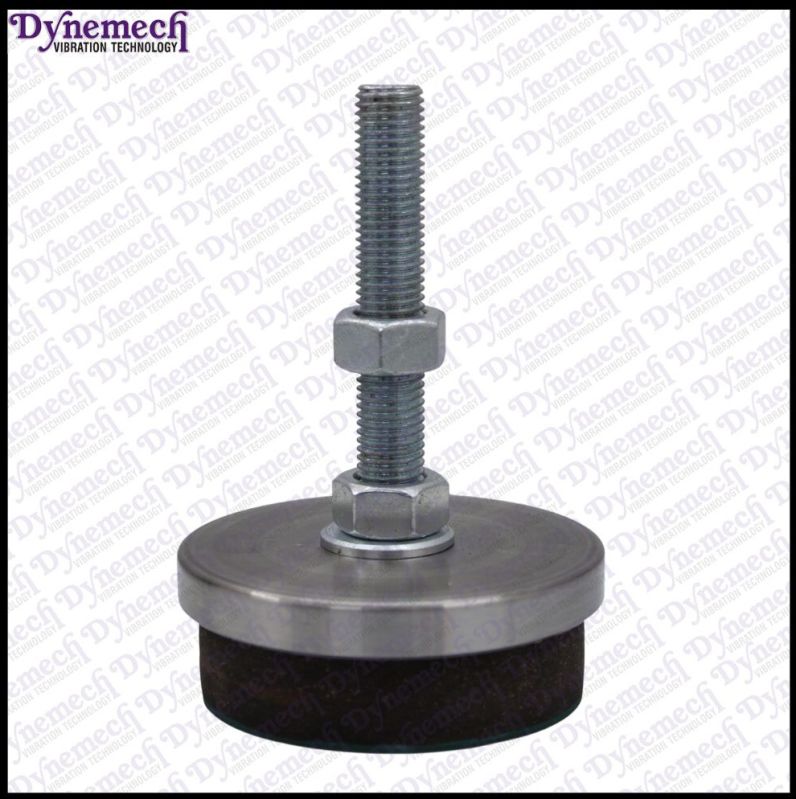

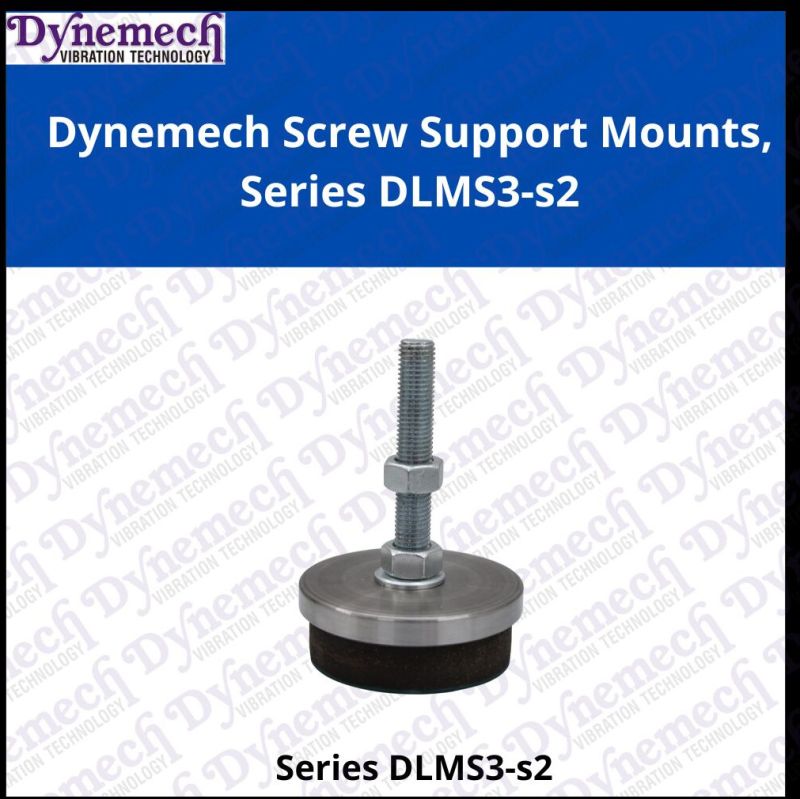

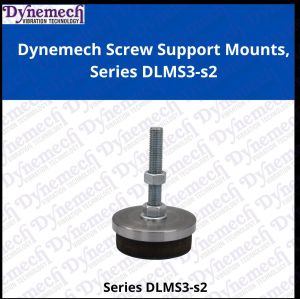

Dynemech Hygienic Vibration Control Leveling Mounts Series DLMS3 s2

Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.

Size :Dia-112(mm), Height-38(mm)

Load Capacity (Kg.):550 Kg/pc

Bolt Size:M16x2.0X150mm

Natural Frequency (Hz):8

Coeff. of Friction:0.8

Working Temp Range °C:-16 to 90

Weight ( Kg.):14 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Green & Dark Grey

Note- GST and Freight Charges are not included.
