Anti Vibration Table
Leading Manufacturers, Exporters, Wholesaler and Trader of Dynemech Avt Anti Vibrating Table for Rondcom 60 ,P-70, Dynemech Anti Vibration Precision Metrology Table ,for Surfcom 480A-14 P 64, Dynemech Anti Vibration Table for Contracer CV3200 H4, P-82-03-A, Dynemech Anti Vibration Table for Duramax Cmm, P-69, Dynemech Anti Vibration Table, Vibration Isolation Table for Surfcom Touch, P-67, Dynemech Economical Anti Vibration Precision Metrology Table for Contourecord C1600-12/-13, P-65, Dynemech Granite Anti Vibrating Table for Profile Projector , P-86-01-A, Dynemech Laboratory Anti Vibration Table for MMQ 400-DX, P-79, Dynemech Laboratory Anti Vibration Table, For Testing Equipment And Machines, P-83-01-A, Dynemech Microscopy Vibration Isolation Table Series DIT E 01, Dynemech Mild Steel Anti Vibrating Table, for Quality Control Laboratory for Contracer CV3200 W4, P-82-03-B, Dynemech Mild Steel Laboratory Anti Vibration Table for Surftest SJ411 , P-81-05-A, Dynemech Passive Air Cushion Avt Precision Measuring Metrology Instrument Anti Vibration Tables , P-92, Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for Hardness Tester, P-85-01-A, Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for SV 2100 W4, P-81-02-A, Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for SV 3200 H4, P-81-03-A, Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for SV 3200 W4, P-82-04-B, Dynemech Precision Measuring Metrology Instrument Avt Anti Vibration Tables for Hardness Tester, P-85-01-A, Dynemech Precision Vibration Isolation Tables, P-90-01-A, Dynemech Quality Control Lab Table - Avt Vibration Isolated Table for SV3200 W4, P-81-04-A, Dynemech Quality Control Lab Table - Vibration Isolated Table for SV3200 W4, P-81-04-A and Dynemech Vibration Control Platforms, Series VIP-E from Sonipat.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | Made In India |
| Brand Name | Dynemech |
| Material | Mild Steel |
| Application | Industrial |
| Granite Thickness | 50 Mm |
| Frame Size | 950x750x50 Mm |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite size L 900 x B 600 x T 50 mm over steel structure
2. 60 x 60 mm Square Tubular Heavy Duty Steel Structure with cross member
3. Wrap around construction
4. Front hinge door
5. 4 Nos. 4’’ wheels
6. 4 Nos. DLP4 AV discs at floor level
7. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch LH Side
11.Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
12. Instrument sticker
13. Overall dimensions: L 920 X B 620 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
Note- GST and Freight Charges are not included.

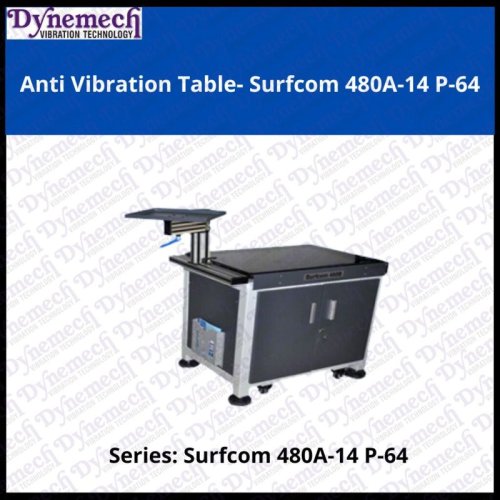

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Condition | New |
| Country of Origin | India,Made In India |
| Application | Industrial |
| Material | Mild Steel |
| Brand Name | Dynemech |
| Series | 480a 14 P 64 |
| Granite Thickness | 50mm |
| Frame Size | 1100x550x50 Mm |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 1100 X B 550 X T 50 mm
2. 60 mm Tubular Structure with cross member to suit 1000 X 450 X 80 mm Granite Base
3. Wrap Around Construction
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!).
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Drawing Pouch L.H Side and front double door with handles and lock
9. Leveling Ball, Spanner 24/27
10. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
11. Instrument sticker
12. Overall dimensions: L 1120 X B 570 X H 730 (over granite base) mm
13. Weight: kg
14. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Color | Grey |
| Type | Anti Vibration Laboratory Table,Anti Vibration Table |
| Material | Mild Steel |
| Application | Laboratory |
| Brand Name | Dynemech |
| Country of Origin | India |
| Warranty | 1 |
| Granite Thickness | 30mm |
| Frame Size | 900x600x30mm |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Water Absorption | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 920 X B 770 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Type | Anti Vibration Table |
| Material | Mild Steel |
| Color | Graphite Grey |
| Application | Industrial |
| Brand Name | Dynemech |
| Country of Origin | India |
| Port | Haryana |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size : L 800 X B 950 X T 100 mm
2. Wrap Around Construction
3. 72 × 72 mm HR tubular structure
4. 4 No’s DLP4 (AV disc with adjustable screws) at Ground Level
5. 13 no’s AV pad between structure and granite base
6. 6 no’s – 4” wheel
7. Cable manager in R.H. Side and rear side, power strip in rear side
8. Drawing pouch; controller, CPU and UPS inside structure
9. Front double door with handles and lock
10. Powder coat color as per customer specification
11. Front swing arm in pivoted joint assembly with horizontal and vertical supported profile to hold monitor, keyboard and mouse. Can be mounted on LH or RH side (newly introduced!)
12. Overall dimensions: L 830 X B 980 X H 750 mm
13. Weight:
14. Execution in wooden box
[Note: We will provide the dimensions]
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Warranty | 1 |
| Type | Anti Vibration Table |
| Condition | New |
| Application | Industrial |
| Material | Mild Steel |
| Brand Name | Dynemech |
| Reduce | Vibration |
| Port | Haryana |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. 60 X 60 mm Tubular Structure to Suit 630 X 400 X 80 mm Granite Base
2. Wrap Around Construction
3. Special swiveling mount for display unit with 45 X 45 X 525 mm Al. Profile
4. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
5. 4 No’s – 3” Wheel
6. Power Strip in Rear & Drawing Pouch L.H Side
7. Front Double Door with handles and lock
8. Leveling Ball, Spanner 24/27
9. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
10. Overall dimensions: L 650 X B 420 X H (over granite base) mm
11. Weight: kg
12. Execution in wooden box
width="392" cellspacing="0" cellpadding="0">
Note- GST and Freight Charges are not included.

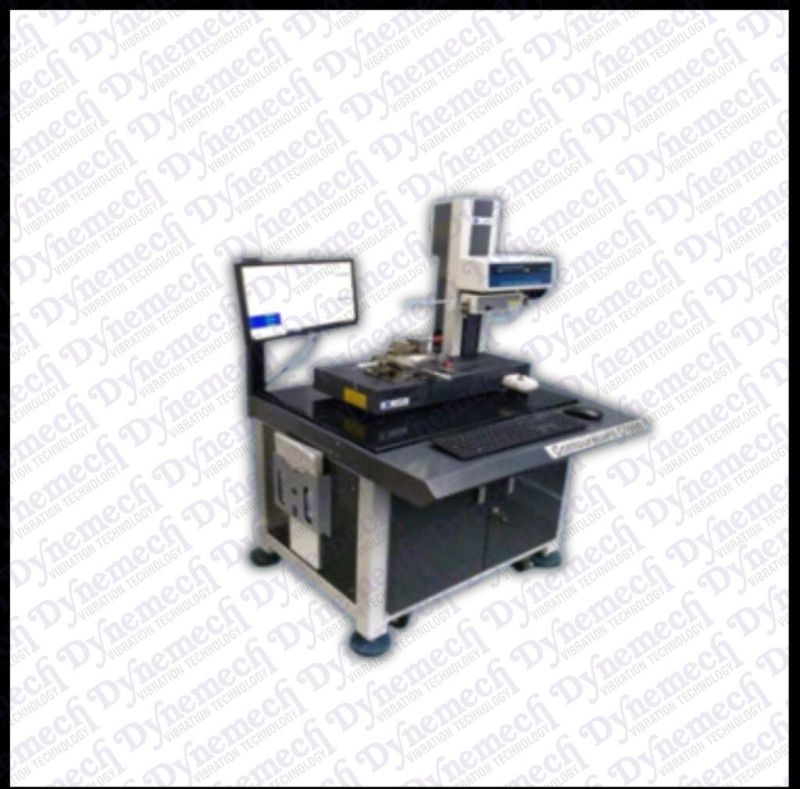

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand Name | Dynemech |
| Material | Mild Steel |
| Application | Industrial |

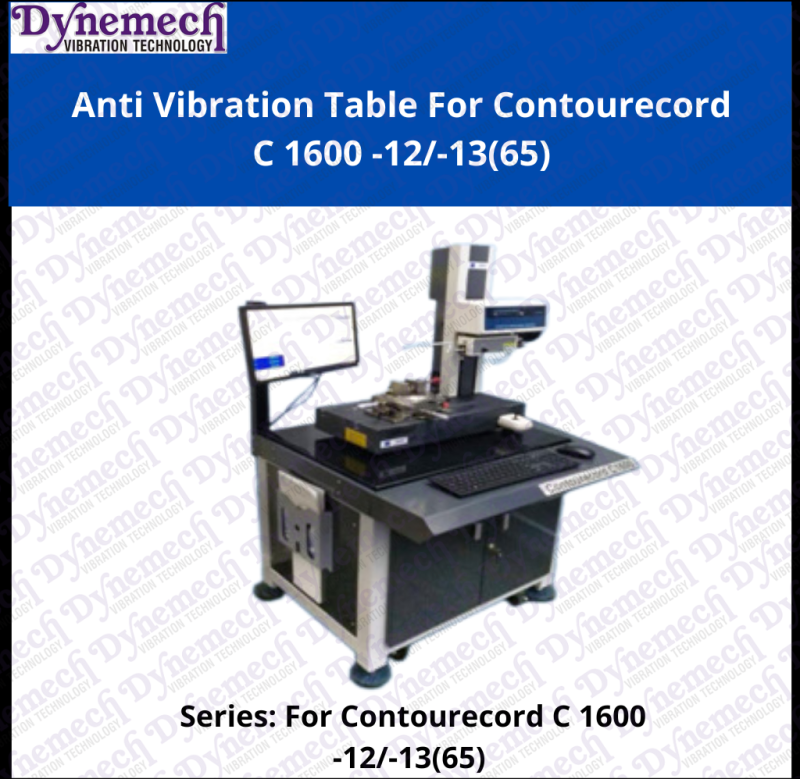

| Type | C1600-12/-13,P-65 |
| Warranty | 1 |
| Country of Origin | India |
| Reduce | Vibration |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; CPU and UPS inside structure
10. Drawing Pouch L.H Side, Cable manager at rear side
11. Front double door with handles and lock
12. External enclosure for control unit fixed on RH side
13. Leveling Ball, Spanner 24/27
14. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
15. Instrument sticker
16. Overall dimensions: L 870 X B 820 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Brand Name | Dynemech |
| Size | 600x900x50mm |
| Application | Industrial |
| Material | Mild Steel |
| Type | Anti Vibration Table |
| Features | Anti Vibration, Scratch Resistant |
| Port | Haryana |
| Payment Terms | Western Union |
1. Granite size L 600 x B 900 x T 50 mm over steel structure
2. 60 x 60 mm Square Tubular Structure with cross member
3. Wrap around construction
4. 4 Nos. 4’’ wheels
5. 4 Nos. DLP4 AV discs at floor level
6. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
7. Front double door with handles and lock
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch LH Side
11. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
12. Instrument sticker
13. Overall dimensions: L 620 X B 920 X H 730 (over granite base) mm
14. Weight: kg
15. Execution in wooden box
Note- GST and Freight Charges are not included.

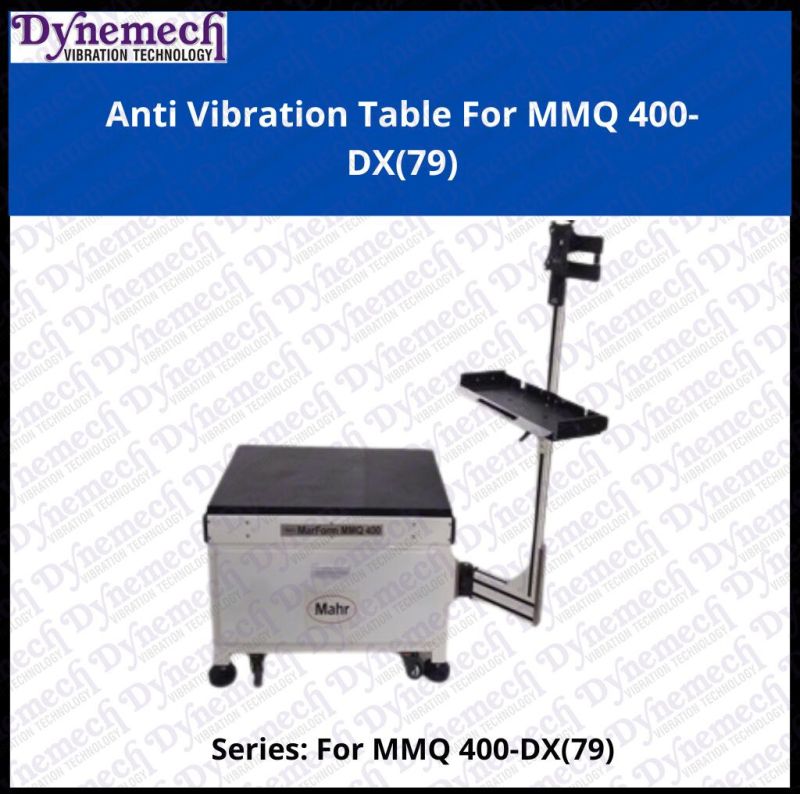

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Brand Name | Dynemech |
| Type | Laboratory Anti Vibration Table,Anti Vibration Table |
| Material | Mild Steel |
| Application | Industrial |
| Country of Origin | India |
| Granite Thickness | 50 Mm |
| Frame Size | 910x610x586 Mm |
| Features | Anti Vibration Pads |
| Scratch Resistant | Yes |

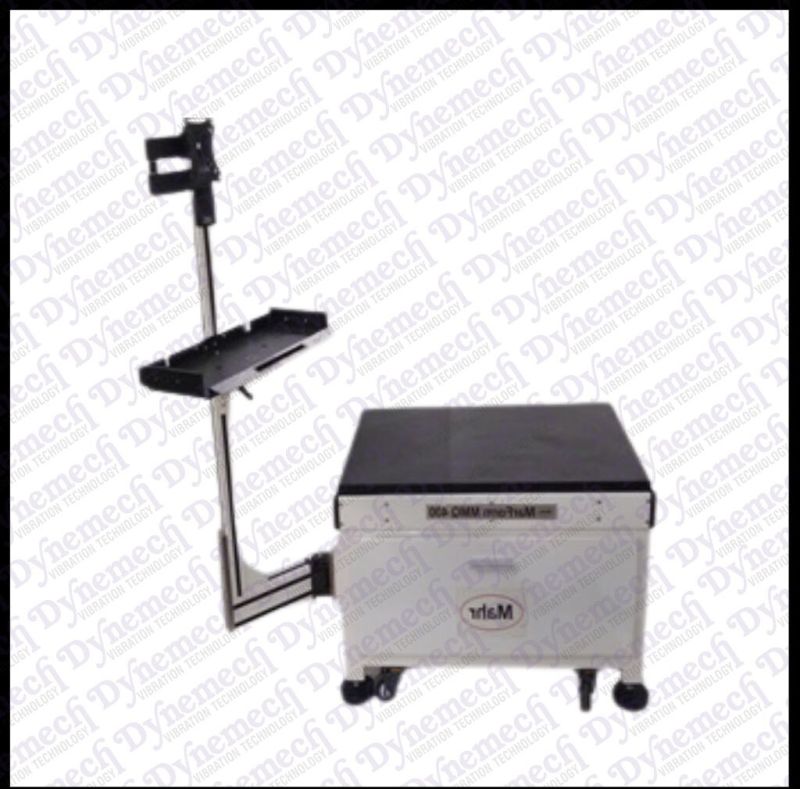

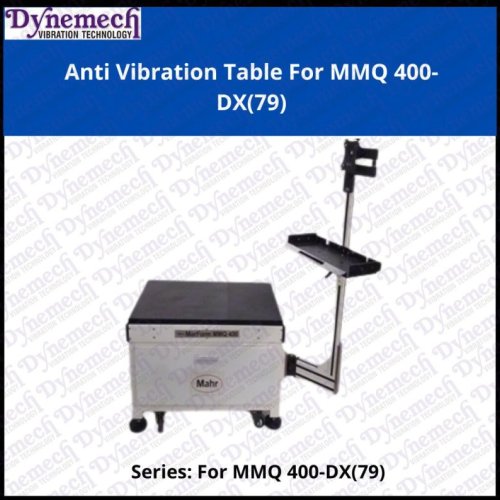

| Series | MMQ 400 DX |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite size L 900 x B 600 x T 50 mm over steel structure
2. 60 x 60 mm square tubular heavy duty steel structure with cross member
3. Wrap around construction
4. Front hinge door
5. 4 Nos. 4’’ wheels
6. 4 Nos. DLP4 AV discs at floor level
7. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
8. Drawing pouch, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Front swing arm in pivoted joint assembly with horizontal and vertical supported profile to hold monitor, keyboard and mouse. Can be mounted on LH or RH side (newly introduced!)
11. Drawing Pouch LH Side
12. Powder Coat, structure, side sheets, doors and wrap around RAL 9002
13. Instrument sticker
14. Overall dimensions: L 920 X B 620 X H 600 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.

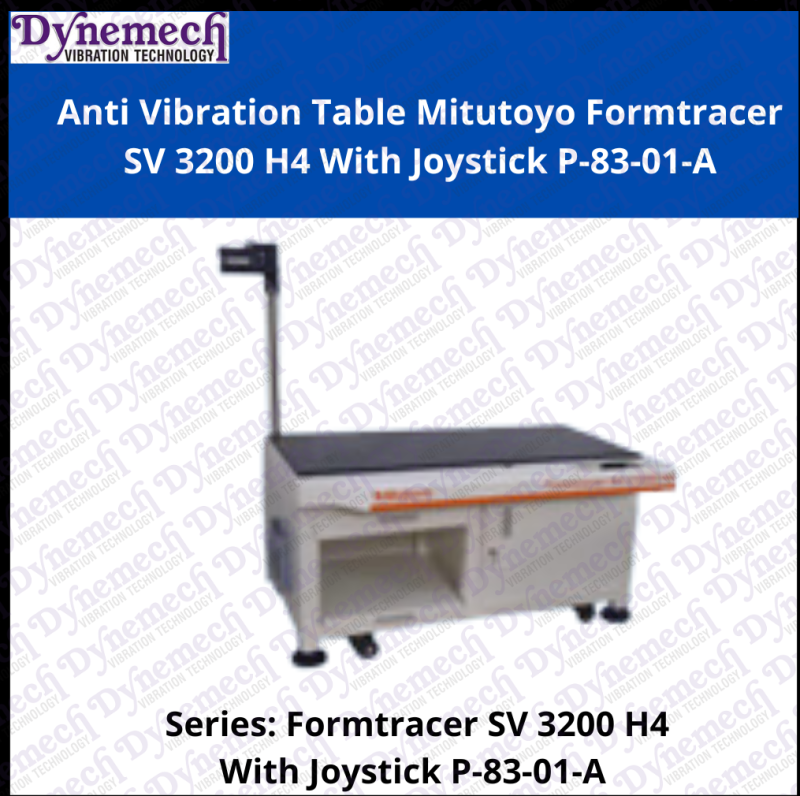

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |
| Warranty | 1 |
| Type | Laboratory Equipment |
| Material | Mild Steel |
| Color | Grey |
| Application | Anti-vibration Applications In Laboratory Settings |

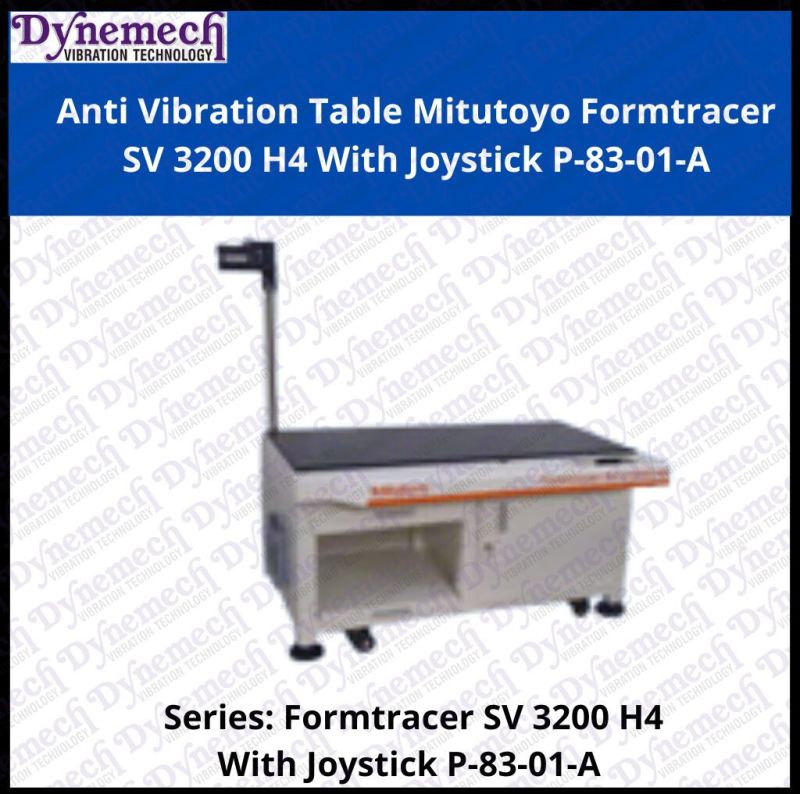

| Series | P 83 01 A |
| Packaging | Box |
| Dimensions | 1000x600x50mm |
| Thickness | 50mm |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
Granite base of size L 1000 X B 600 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
9. Power Strip in Rear & Drawing Pouch L.H Side
10. Cable manager at rear side; controller, CPU and UPS inside structure
11. Front RH single door with handle lock , LH side top drawer and bottom pull-out tray for printer
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1020 X B 810 X H 730 (over granite base) mm
16. Weight: kg
Note- GST and Freight Charges are not included.

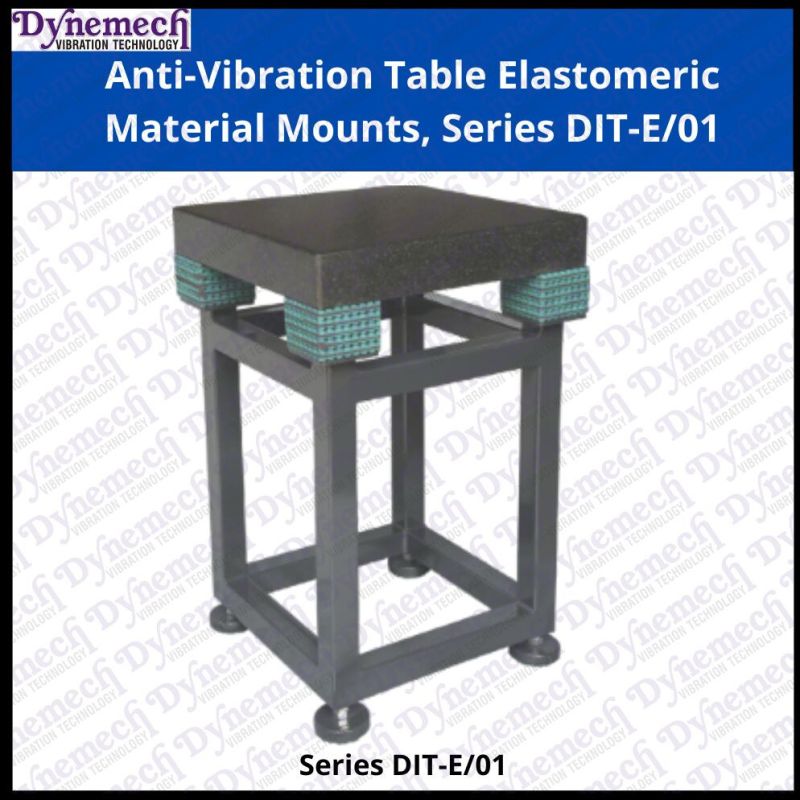

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Color | Black |
| Material | Mild Steel,Powder Coated Low Carbon Steel |
| Type | Shock Resistant Table,DIT-E/01 |
| Country of Origin | India |
| Application | For Industrial |
| Condition | New |
| Brand Name | Dynemech |
| Table Loading Capacity | 100-250 Kg |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 4-5 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |

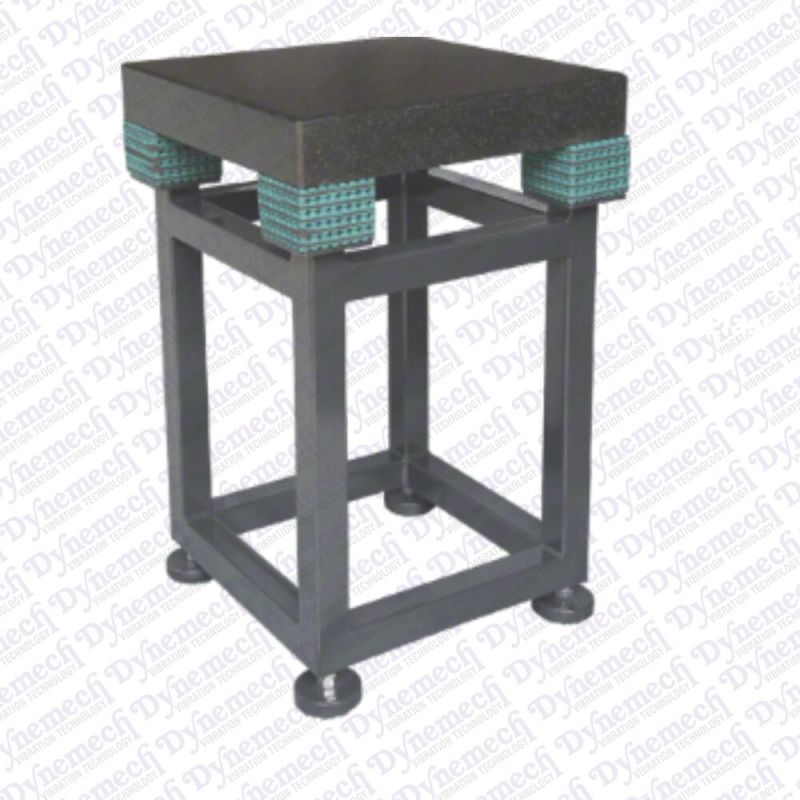

Dynemech Anti Vibration Tables - Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%.
Size:500x500x800mm Load Capacity:250Kg/pc Surface Plate Thickness(mm):80mm Natural Frequency At Max. Load (Hz):7 To 8 Hz
Weight Of 04 Nos ( Kg.):480 Kgs Box Dimension:23"X23"X10" & 23"X23"X29" Number Of Box-08
Material: Powder Coated Low Carbon Steel Frame , Rubber & Granite Surface.
Colour: Black
Note- GST and Freight Charges are not included.
Dynemech Mild Steel Anti Vibrating Table, for Quality Control Laboratory for Contracer CV3200 W4, P-82-03-B
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Brand Name | Dynemech |
| Type | Anti Vibration Table- Mitutoyo Contracer,Anti-Vibration Table |
| Material | Mild Steel |
| Application | Industrial |
| Country of Origin | India |
| Granite Thickness | 30mm |
| Frame Size | 750x600x30mm |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |

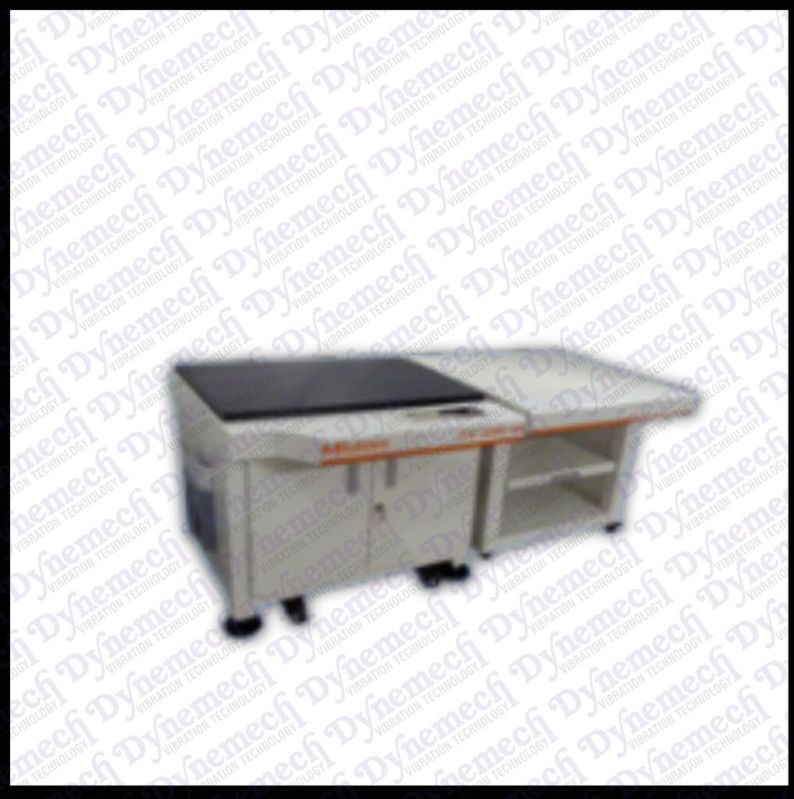

1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 8 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Size | 600x500x30mm |
| Brand Name | Dynemech |
| Material | Mild Steel |
| Application | Industrial |
| Type | Anti Vibrating Table, Anti Vibration Table-Mitutoyo Surftest SJ 411,Anti-Vibration Table |
| Country of Origin | India |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 600 X B 500 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction
4. 65 X 65 mm AV pads at 8 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard for placing keyboard and mouse
8. All three sides closed, bottom sheet to place controller, CPU and UPS
9. Front double door with handles and lock
10. Cable manager in rear side; exhaust fan
11. Power strip in rear; Leveling Ball, Spanner 24/27
12. Powder Coat, structure and joystick panel RAL 9002
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 620 X B 710 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
Dynemech Passive Air Cushion Avt Precision Measuring Metrology Instrument Anti Vibration Tables , P-92
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Material | Mild Steel |
| Condition | New |
| Application | Industrial |
| Type | Anti Vibrating Table |
| Country of Origin | Made In India,India |
| Brand Name | Dynemech |
| Warranty | 1 |
| Feature | Anti Vibration |
| Granite Thickness | 50mm |
| Frame Size | 900x600x50mm |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |

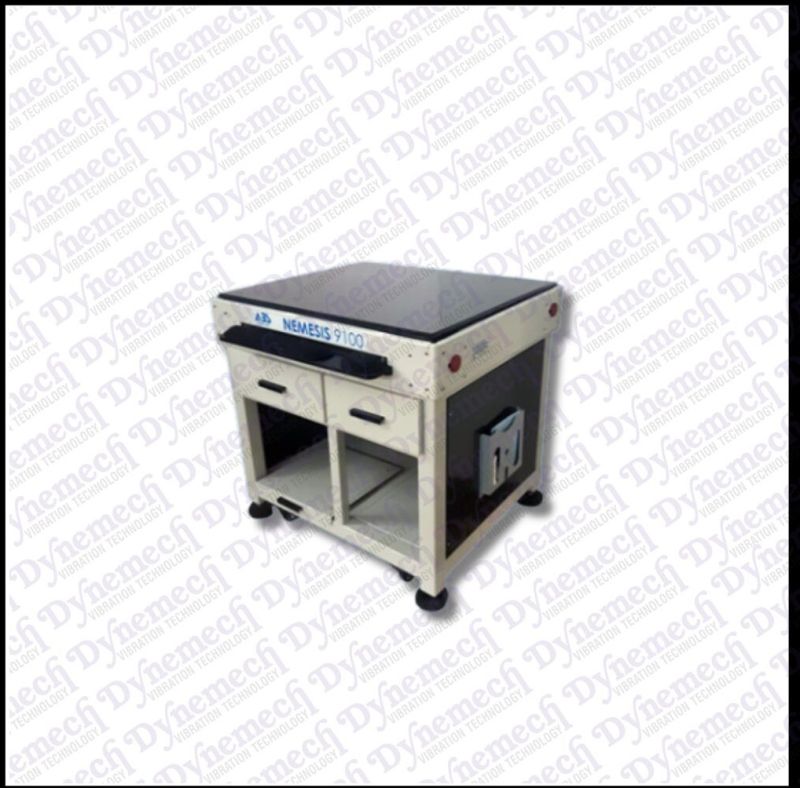

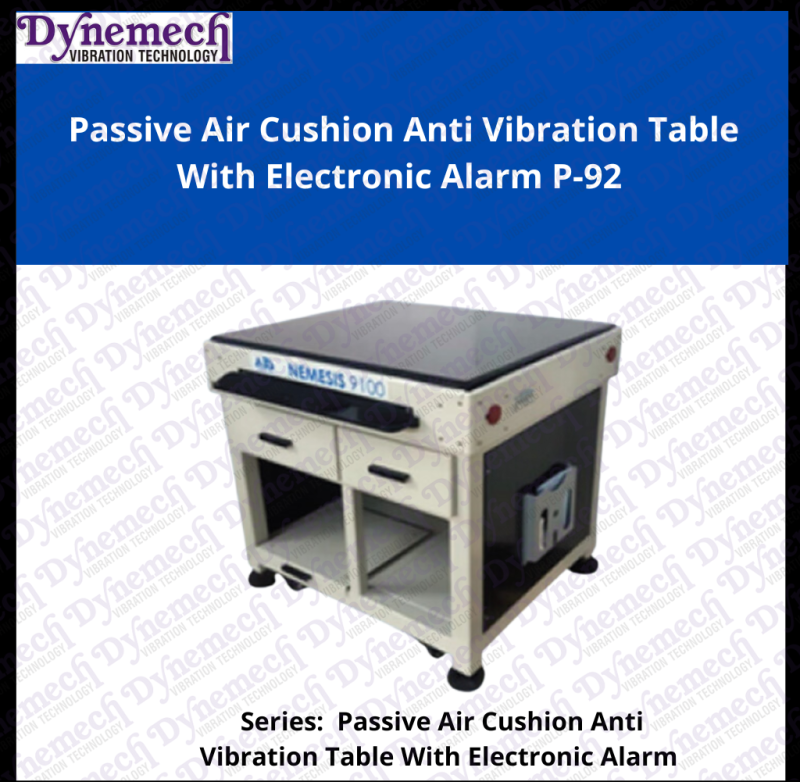

1. Passive Air Cushion AVT with Electronic alarm
2. Aurdino-Uno controller based with limit switches for upper and lower position
3. With alarm buzzer and LED indicator for high/low
4. Granite base of size L 900 X B 600 X T 50 mm Thickness
Passive Air Cushion AVT with Electronic alarm
Aurdino-Uno controller based with limit switches for upper and lower position
With alarm buzzer and LED indicator for high/low
Granite base of size L 900 X B 600 X T 50 mm Thickness
Note- GST and Freight Charges are not included.
Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for Hardness Tester, P-85-01-A
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Application | Industrial |
| Material | Mild Steel |
| Country of Origin | Made In India,India |
| Warranty | 1 |
| Series | P 85 01 A |
| Granite Thickness | 30mm |
| Frame Size | 450x750x30 |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |

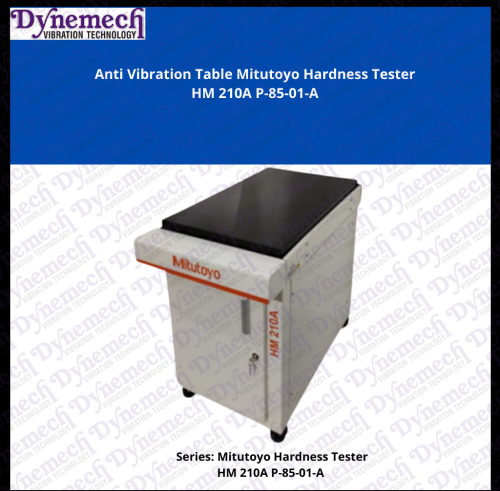

AVT- Mitutoyo Hardness tester HM 210A P-85-01-A
1. 60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm
2. Wrap Around Construction with front extended cover for aesthetics
3. 4 No’s – 2” Caster wheels
4. Power Strip in Rear & Drawing Pouch on L.H Side
5. Front single door with handles and lock
6. Leveling Ball, Spanner 24/27
7. Powder Coat, structure, side sheets and doors RAL 9002
8. Overall dimensions: L 570 X B 770 X H 600 (over granite base) mm
9. Weight: kg
10. Execution in wooden box
Note- GST and Freight Charges are not included.

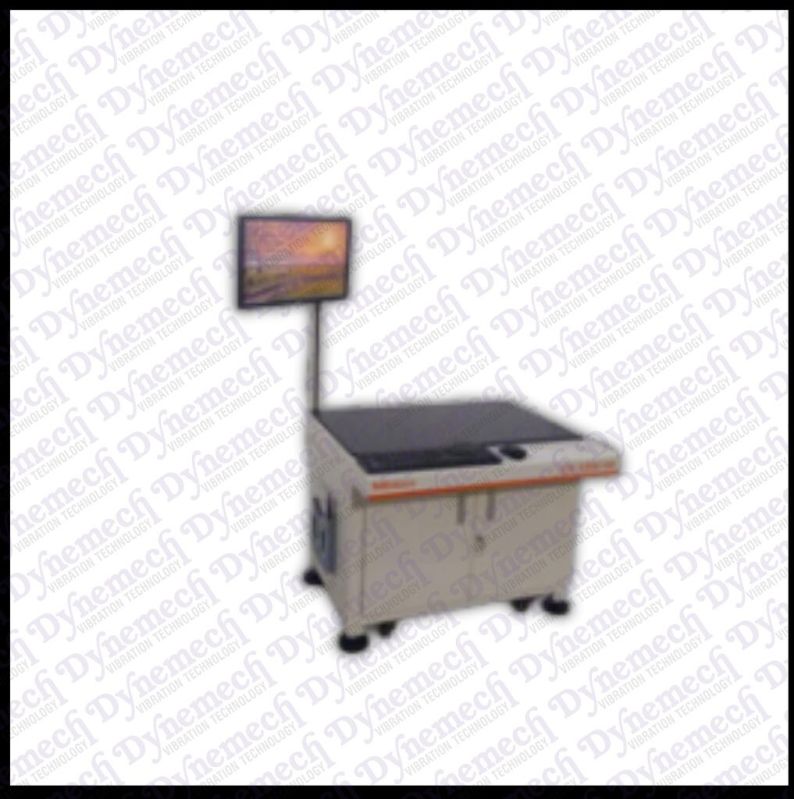

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | India |

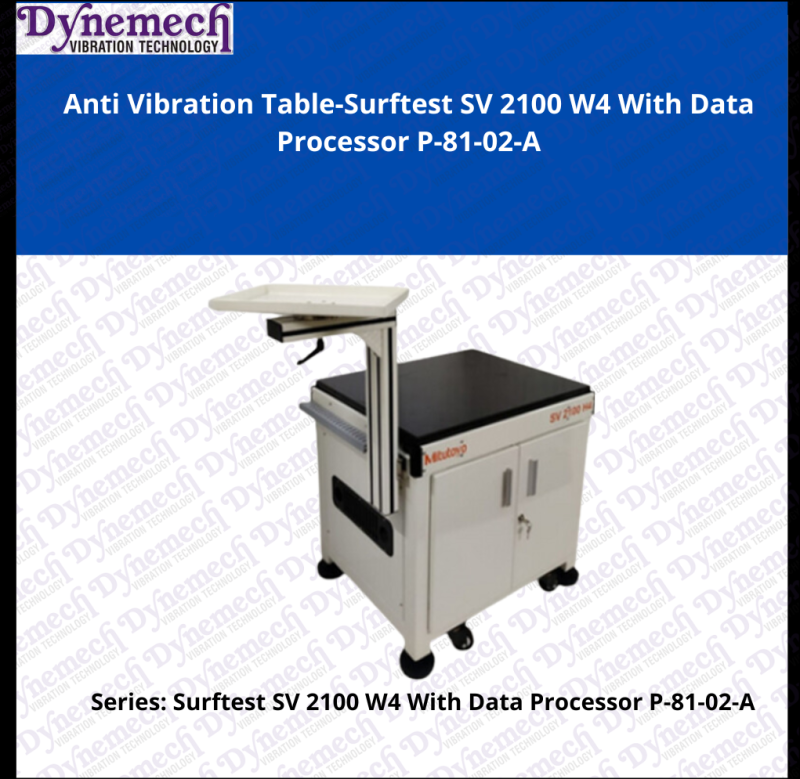

| Application | Anti Vibration Table For Surftest SV-2100 Surface Roughness Tester |
| Material | Mild Steel |
| Brand Name | Dynemech |
| Type | Anti Vibration Table,SV 2100 W4 |
| Granite Thickness | 50 |
| Frame Size | 1100x600x50mm |
| Fiber Type | Anti Vibration Table-Surftest |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Water Absorption | No |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 1100 X B 550 X T 30 mm
2. 60 mm Tubular Structure
3. Wrap Around Construction with left angular profile
4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!) for placing data processor.
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Power Strip in Rear; controller, CPU and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Leveling Ball, Spanner 24/27
12. Powder Coat, structure, side sheets and doors RAL 9002
13. Instrument sticker
14. Overall dimensions: L 1120 X B 570 X H 730 (over granite base) mm
16. Weight: kg
17. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | Made In India,India |
| Application | Industrial |
| Material | Mild Steel |
| Type | Anti Vibration Table |
| Granite Thickness | 50mm |
| Frame Size | 900x600x50mm |
| Fiber Type | Anti Vibration Table Surfest |
| Features | Anti Vibration |
| Scratch Resistant | Yes |

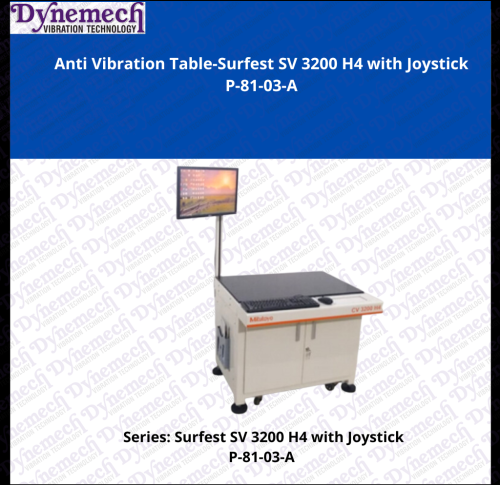

| Series | SV 3200 H4 |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 900 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
16. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
17. Weight: kg
18. Execution in wooden box
Note- GST and Freight Charges are not included.

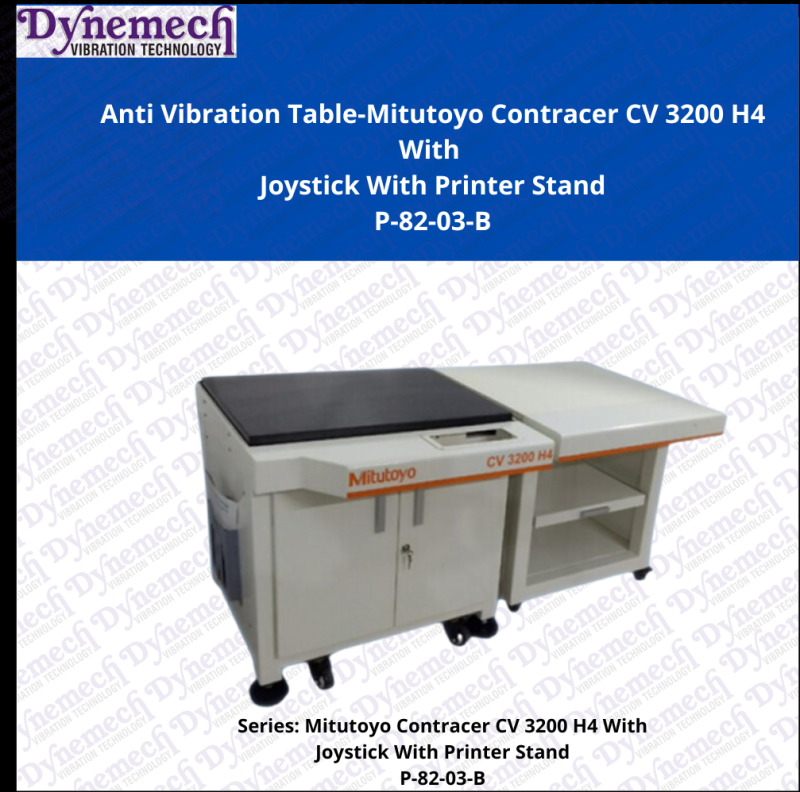

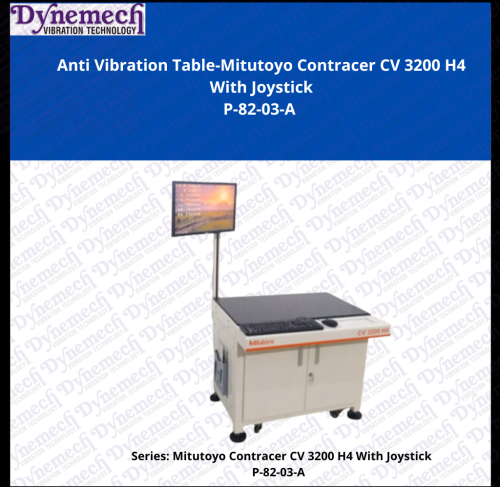

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand Name | Dynemech |
| Country of Origin | Made In India,India |

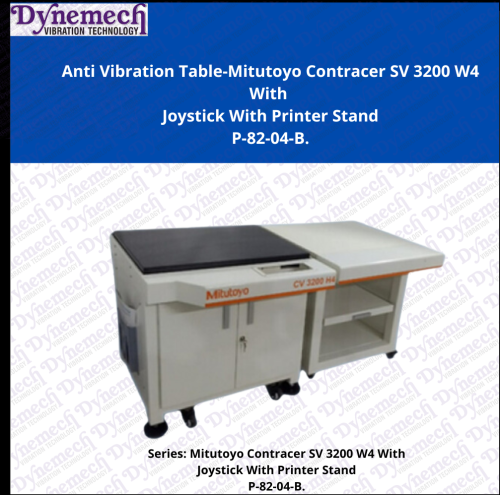

| Type | AntVT- Mitutoyo Contracer SV 3200 W4 |
| Material | Mild Steel |
| Application | Industrial |
| Granite Thickness | 30mm |
| Frame Size | 1100x600x30mm |
| Fiber Type | AntVT- Mitutoyo Contracer |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Water Absorption | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 1100 X B 550 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 9 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Power Strip in Rear; controller and UPS inside structure
9. Drawing Pouch LH Side, cable manager at rear side
10. Front double door with handles and lock
11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
16. Printer stand dimensions: L 600 X B 770 X H 730 mm
17. Weight: kg
Note- GST and Freight Charges are not included.
Dynemech Precision Measuring Metrology Instrument Avt Anti Vibration Tables for Hardness Tester, P-85-01-A
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Brand Name | Dynemech |
| Country of Origin | Made In India,India |
| Application | Industrial |
| Material | Mild Steel |
| Type | Laboratory Table |
| Series | SV C3200 H4/W4,P-83-02-C |
| Features | Anti Vibration Pads |
| Frame Size | 1200x600x50 Mm |
| Scratch Resistant | Yes |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. 60 X 60 mm Tubular Structure to Suit Granite size 450 X 750 X 30 mm
2. Wrap Around Construction with front extended cover for aesthetics
3. 4 No’s – 2” Caster wheels
4. Power Strip in Rear & Drawing Pouch on L.H Side
5. Front single door with handles and lock
6. Leveling Ball, Spanner 24/27
7. Powder Coat, structure, side sheets and doors RAL 9002
8. Overall dimensions: L 570 X B 770 X H 600 (over granite base) mm
9. Weight: kg
10. Execution in wooden box
Note- GST and Freight Charges are not included.

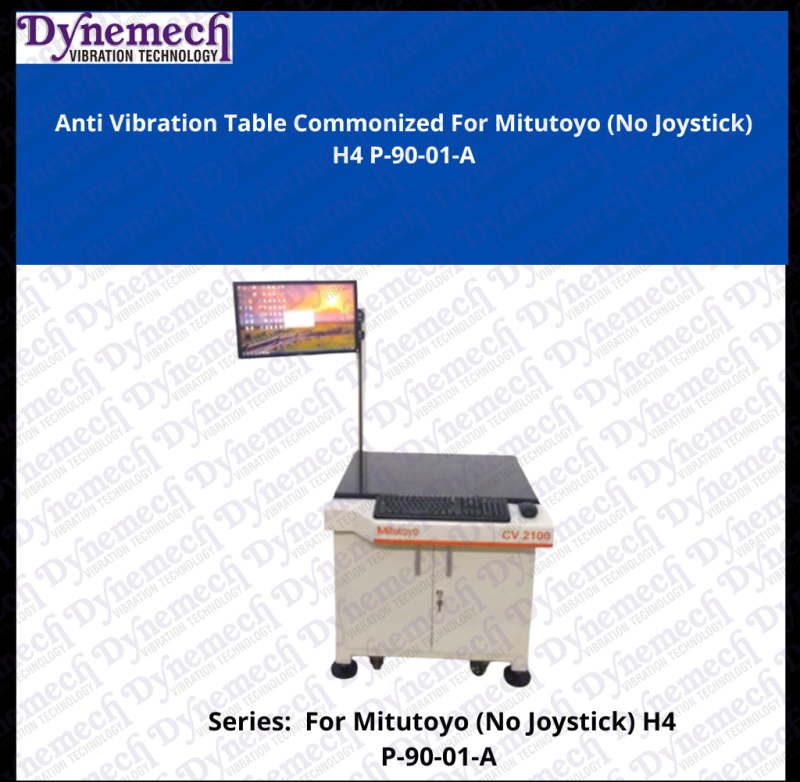

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Application | Industrial |
| Brand Name | Dynemech |
| Type | Vibrating Table |
| Condition | New |
| Material | Mild Steel |
| Country of Origin | Made In India,India |
| Series | P-90-01-A |
| Granite Thickness | 30 Mm |
| Frame Size | 750x600x30 Mm |
| Features | Anti Vibration |
| Scratch Resistant | Yes |
| Port | Haryana |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
14. Instrument sticker
15. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand Name | Dynemech |
| Material | Mild Steel |
| Color | Grey |
| Condition | New |
| Application | Industrial |
| Type | Anti Vibration Table |
| Country of Origin | Made In India,India |
| Granite Thickness | 50mm |
| Frame Size | 1100x600x50mm |
| Scratch Resistant | Yes |
| Warranty | 1 |
| Finishing | Polished |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |
1. Granite base of size L 1100 X B 550 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand Name | Dynemech |
| Material | Mild Steel |
| Color | Grey |
| Condition | New |
| Type | Anti-Vibration Table |
| Warranty | 1 |
| Country of Origin | India |
| Application | Industrial |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement |

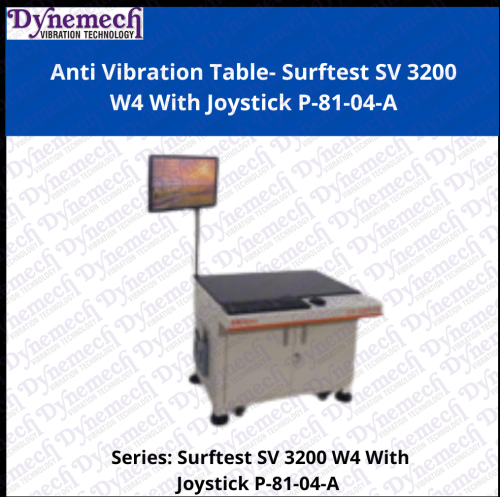

1. Granite base of size L 1100 X B 550 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 9 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse, lasercut joystick pocket with top rim and Z-plates at bottom to lock joystick.
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure, side sheets and doors RAL 9002
14. Instrument sticker
15. Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm
16. Execution in wooden box
Note- GST and Freight Charges are not included.

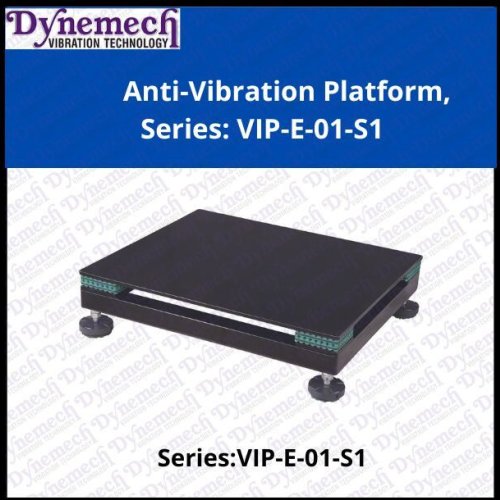

| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Material | Metal,Cast Iron & Rubber |
| Type | Anti Vibration Table |
| Weight | Heavy |
| Country of Origin | India |
| Packaging | Box |
| Model | Series VIP-E-01-S1 |
| Brand | Dynemech |
| Usage/Application | Laboratory Equipment |
| Condition | New |
| Warranty | 1 |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 4-5 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |

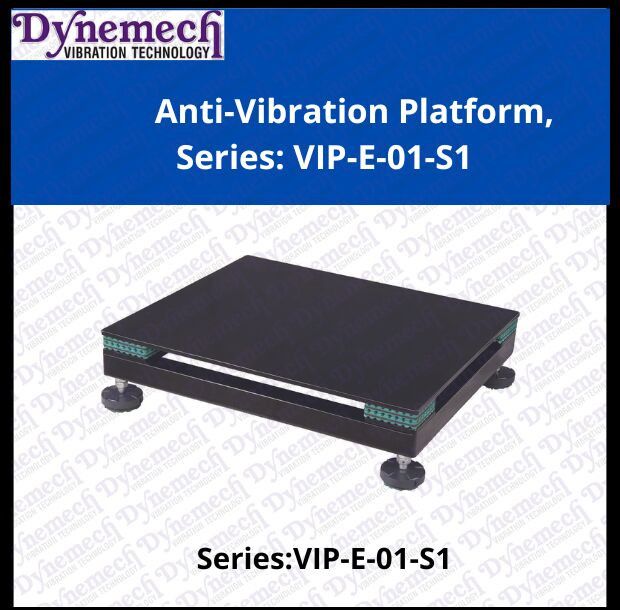

Dynemech Anti Vibration Platform VIP-E The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. Which damps most of the incoming frequencies above 15 Hz.
Size:600x600x170mm
Load Capacity:150 Kg/pc
Top Plate Thickness T (mm):10
Weight Of 04 Nos ( Kg.):250 Kgs
Box Dimension:23"X23"X5"
Number Of Box-04
Material: Rubber+Cast Iron
Colour: Black & Grey
Note- GST and Freight Charges are not included.
