Screw Support Mounts

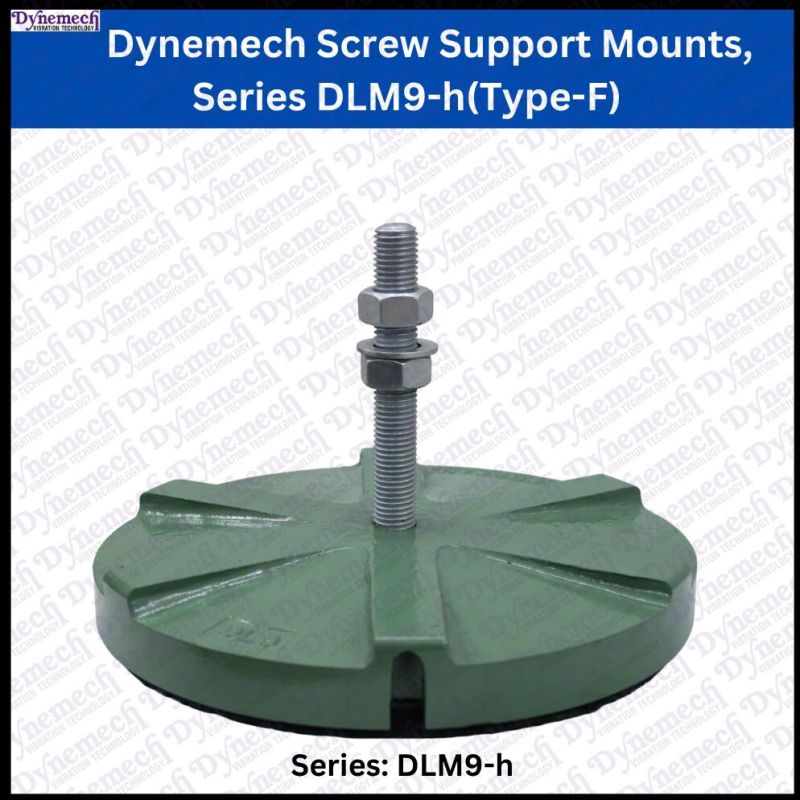

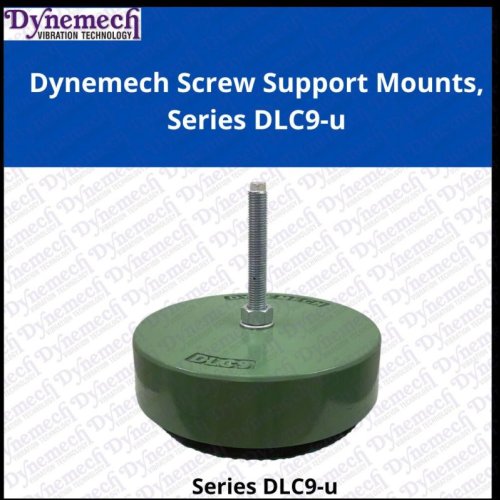

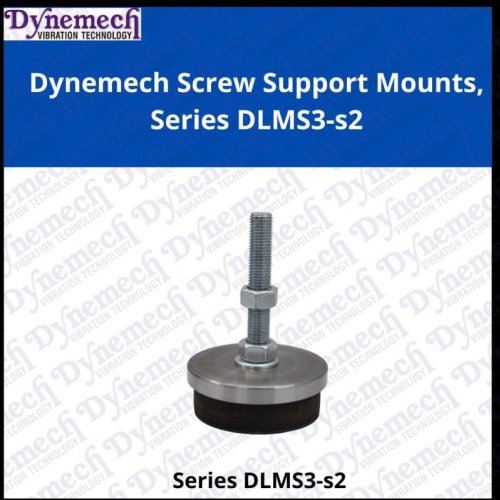

Leading Manufacturers, Exporters, Wholesaler and Trader of Dynemech Adjustable Equipment Base Vibration Control Mounts Series DLM9 H, Dynemech Adjustable Levelling Mounts for Machines Series DLC9 U, Dynemech Hygienic Vibration Control Leveling Mounts Series DLMS3 s2 and Dynemech Levelling Antivibration Mounts for Industrial Machines Series DLT9 U from Sonipat.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Load | 15690 Kgs |
| Type | Screw Support Mount |
| Brand | Dynemech |
| Condition | New |
| Series | DLM9 H |
| Warranty | 1 |
| Material | Cast Iron |
| Shape | Round |
| Application | Vibration Control For Machinery |
| Color | Green |
| Country of Origin | India |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |
Dynemech offers a variety of SCREW SUPPORT MOUNTS Series DLC to improve the design and performance of the machine tools to meet customer demand. Insulation plates having different load carrying capacities and different natural frequencies are assembled with screw support mounts to suit almost every industrial application.
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand | Dynemech,DYNEMECH |
| Load | 4200 Kg/pc |
| Type | DLC9-U,DLC9-u |
| Finishing | Painted |
| Pressure | Load Capacity (Kg.):4200 Kg/pc |
| Temperature | 16 |
| Weight | 30 Kgs |
| Size | Size :Dia-302(mm), Height-84(mm) |
| Material | Cast Iron |
| Diameter | Size :Dia-302(mm) |
| Application | Industrial |
| Color | Green |
| Country of Origin | Made In India |
| Reduces | Vibrations |
| Port | Haryana |
| Payment Terms | Western Union |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |
Dynemech offers a variety of SCREW SUPPORT MOUNTS Series DLC to improve the design and performance of the machine tools to meet customer demand. Insulation plates having different load carrying capacities and different natural frequencies are assembled with screw support mounts to suit almost every industrial application.
Size :Dia-302(mm), Height-84(mm)
Load Capacity (Kg.):4200 Kg/pc
Bolt Size:M24x3.0X200mm
Natural Frequency (Hz):18
Coeff. of Friction:0.8
Adj.(mm):18
Working Temp Range °C:-16 to 90
Weight ( Kg.):30
Material:Rubber+Cust Iron+Mild steel
Colour:Green & Dark Grey
Box Dimension: 14"x14"7"
04 Nos Weight is :130 Kgs
Number Of Boxes:4
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Material | Cast Iron |
| Color | Grey |
| Application | Industrial |
| Size | Dia-112(mm),Height-38(mm) |
| Type | DLMS3-s2 |
| Country of Origin | Made In India |
| Temperature | 16 |
| Weight | 14 Kgs |
| Diameter | 112(mm) |
| Load | Load Capacity (Kg.):550 Kg/pc,150 Kg/pc To 550 Kg/pc |
| Reduces | Vibrations |
| Brand Name | Dynemech,DYNEMECH |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 2-3 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |
Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.
Size :Dia-112(mm), Height-38(mm)
Load Capacity (Kg.):550 Kg/pc
Bolt Size:M16x2.0X150mm
Natural Frequency (Hz):8
Coeff. of Friction:0.8
Working Temp Range °C:-16 to 90
Weight ( Kg.):14 Kg.
Material:Rubber+Cust Iron+Mild steel
Colour:Green & Dark Grey
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Material | Cast Iron |
| Color | Green |
| Application | Industrial |
| Size | Size :Dia:276 Mm,Height:43mm |
| Type | Screw Support Mount |
| Country of Origin | Made In India |
| Finishing | Painted |
| Series | DLT9-u |
| Pressure | Load Capacity (Kg.):4200 Kg/pc |
| Temperature | 16 |
| Diameter | Dia:276 Mm |
| Load | 150 Kg/pc To 4200 Kg/pc |
| Reduces | Vibrations |
| Brand Name | DYNEMECH |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 2-3 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |
Dynemech DLT Series Antivibration mountings are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot and anchor bolt passes from the machine foot, mount and anchored in the floor nut. An insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. The dimple and the thru hole in the mount are provide as per the bolt specifications of the machine.
Size :Dia:276 mm, Height:43mm,
Load Capacity (Kg.):4200 Kg/pc
Bolt Size:M24x300mm(Anchored Set)
Natural Frequency (Hz):18
Coeff. of Friction:0.9
Working Temp Range °C:-16 to 90 Through
hole:22mm
Material:Rubber+Cust Iron+Mild steel
Colour:Green & Dark Grey
Note- GST and Freight Charges are not included.
