Precision Levelling Mounts
Leading Manufacturers, Exporters, Wholesaler and Trader of Dynemech Foundation Shift Compensation Anti Vibration Fixators Series VHS-V, dynemech lateral adjuster precision levelling mount, Dynemech Machine Foundation Leveling Technology, Series DFL1-S3 and Dynemech Precision Equipment Leveling Mounts Series DFL2-S1 from Sonipat.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Type | VHS-V |
| Condition | New |
| Color | Red/Dark Grey |
| Country of Origin | Made In India,India |
| Material | Cast Iron |
| Brand | Dynemech |
| Application | For The Levelling,Adjustment & Fixation Of Large Machinery And Other Heavy Equipment Like Boilers |
| Size | 350x230x138mm |
| Packaging Type | Corrugated |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 10-12 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |
Dynemech Precision Levelling Mounts Series -VHS-V Festofix are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads requiring only a small hand wrench to adjust. These mounts provide the most rigid machine-to-foundation connection. The 3-piece wedge design provides true vertical lift and eliminates lateral movement as machines are raised or lowered.
Length:170(mm) To 350(mm)
Width:108(mm) To 230(mm) Height:60(mm) To 138(mm) Recommended Load Capacity: 1000 Kg/pc To 12000 Kg/pc
Max. Load(Kg/pc):9000 Kg/pc To 70000 Kg/pc
L1(mm):91 To 180
D(mm):75 To145 (mm)
h(mm):5 To 10
f(mm): 17 To 37
G(M12 To M36
a(mm):12 To 35
SW1: 19 To 40
SW2:10 To 21
e1:12.7 To 28
e2:26 To 46
4 Nos Weight ( Kg.): 190 kg
Material: Cost Iron & sheet Metal
Colour: Red/Dark Grey
4 Nos Boxes: 4
4 Nos Box Size: 13"x8"x7 Delivery Time: 10-12 days
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Warranty | 1 |
| Type | VHS-LA-V |
| Condition | New |
| Country of Origin | India |
| Material | Cast Iron,Cast Iron & Sheet Metal |
| Color | Red/Dark Grey |
| Brand | Dynemech |
| Application | VHS-LA-V Series Mounts Provides Precision Levelling To The Machine. |
| Size | 350x230x138mm |
| Packaging Type | Wooden Box |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 15-20 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |

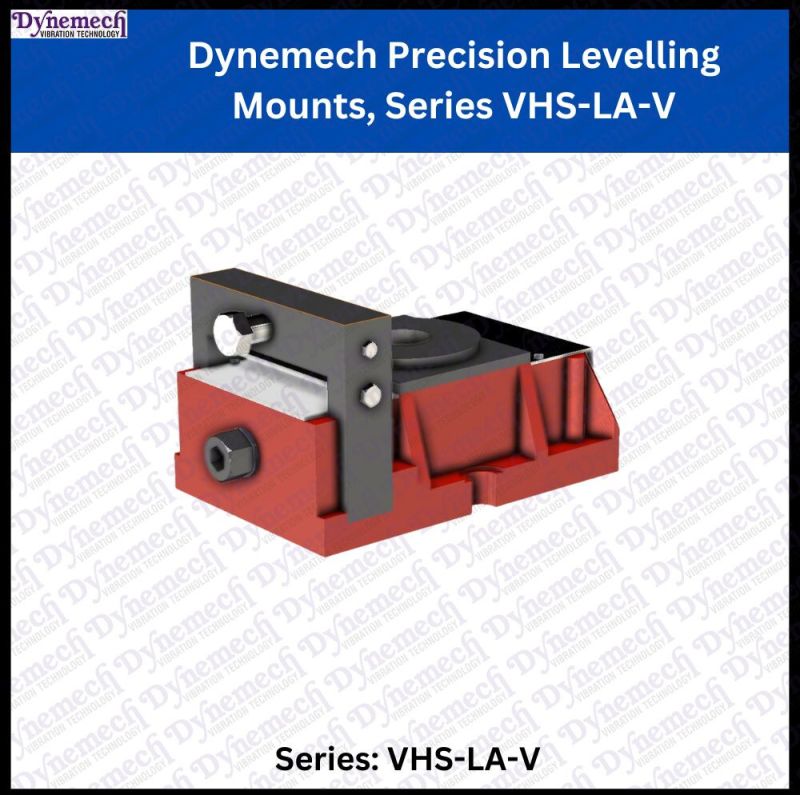

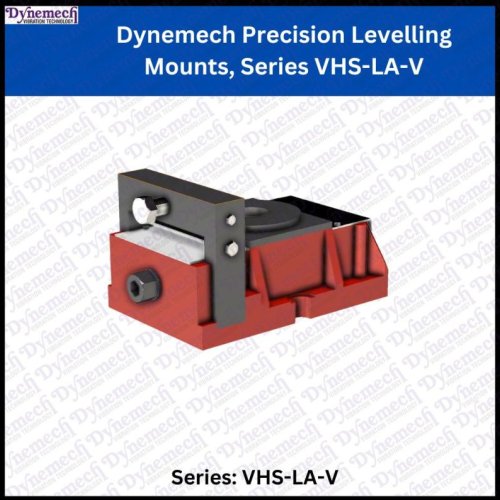

Dynemech Precision Levelling Mounts Series VHS-LA-V series mounts provides precision levelling to the machine. The levelling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Length:170(mm) To 350(mm)
Width:108(mm) To 230(mm)
Height:60(mm) To 138(mm)
Load Capacity: 1000 Kg/pc To 12000 Kg/pc
4 Nos Weight ( Kg.): 216 kg
Material: Cast Iron & Sheet Metal
Colour: Red/Dark Grey
4 Nos Box Size: 13"x8"x7
4 Nos of Boxes: 4
Delivery Time: 15 To 20 Days
Production Capacity: 50 To 60 set per month
Surface Finishing: Painted
4 Nos Box Size: 13"x8"x7
4 Nos of Boxes: 1
L1(mm): 91 To 180
B(mm): 108 To 230
D(mm): 75 To 145
h(mm): 5 To 10
f(mm): 17 To 37
G: M12 To M36
a(mm): 12 To 35
SW1: 19 To 32
SW2: 10 To 18
e1: 12.7 To 28.0
e2: 26 To 46
Total height with lateral adjuster H1(mm): 100 To 185
Lateral Adjuster Bolt Size(SW3): M16 To M20
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand | Dynemech |
| Material | Cast Iron |
| Color | Green/Dark Grey |
| Type | Precision Levelling Mounts,DFL1 S3 |
| Country of Origin | India |
| Load Capacity | 12200 |
| Warranty | 1 |
| Size | 188x140x68.5mm |
| Load | 12200(Kg) |
| Port | Haryana |
| Payment Terms | Western Union |
| Delivery Time | 10-12 Days |
| Packaging Details | Wooden and Corrugated Boxes As Per Customer Requirement. |

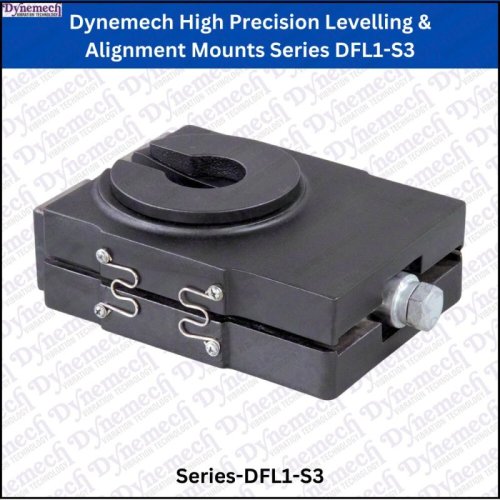

Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:188(mm)
Width:140(mm)
Height:68.5(mm)
Load Capacity: 12200 Kg
Natural Frequency (Hz): N/A
Max. Torque value (N.m): 603
Adjustment Range(mm): 6
Coeff. of Friction: N/A
Production Capacity: 100-150 set per month
Surface Finishing: Painted
Working Temp Range : N/A
4 Nos Weight ( Kg.): 45 kg
Material: Cast Iron
Colour: Green/Dark Grey
4 Nos of Box Size: 13"x8"x7
4 Nos of Boxes: 2
Delivery Time: 10-12 Days
Note- GST and Freight Charges are not included.
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand | Dynemech |
| Condition | New |
| Application | Industrial Use, High Precision Levelling And Alignment Applications |
| Material | Cast Iron |
| Country of Origin | Made In India |
| Size | 255x155x73mm |
| Series | DFL2 S1 |
Dynemech High Precision Levelling & Alignment Mounts Series DFL The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Length:255(mm)
Width:155(mm)
Height:73(mm)
Load Capacity: 4000 Kg
Natural Frequency (Hz):N/A
Coeff. of Friction:N/A
Working Temp Range : N/A
4 Nos Weight ( Kg.): 60 kg
Material: Cast Iron
Max. Torque value(N.m): 216
Adjustment Range(mm): 5
Production Capacity: 100-150 set per month
Surface Finishing: Painted
Colour: Green/Dark Grey
4 Nos Box Size: 13"X8"x7
4 Nos of Boxes: 2
Time: 4-5 Days
Note- GST and Freight Charges are not included.
