GST NO. : 06AABCD4754E1ZX
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Country of Origin | Made In India |
| Size | 500x500x25mm |
| Material | Nitrile Rubber,Cork,Synthetic Fibre |
| Click to view more | |
Product Details
Application Industry
Insulation
Thickness
25mm
Max Withstanding Temperature
-20 To +70
Load Capacity (Kg/Sq Cm)
05-14
Natural Frequency (Hz)
12-22 Hz
Shore A Hardness
90-92
Size/Dimension
500x500x25mm
Series
Di
Brand Name
Dynemech
Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.
Note- GST and Freight Charges are not included.

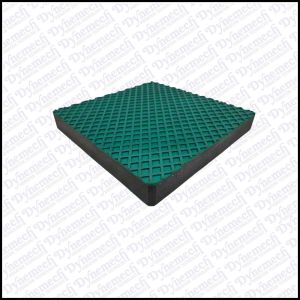

Looking for "Dynemech Anti Vibration (Av) Rubber Pads, Vibration Pad,series DI" ?
