| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Series | DF1-u |
| Reduces | Noise, Vibrations |
| Weight | 1.5 Mm |
| Click to view more | |
Product Details
Packaging Type
Wooden Box
Capacity
400 Kg/pc
Temperature
16 To 90
Size
105x55x60mm
Brand
Dynemech
Material
Cast Iron
Application
Industrial
Color
Green
Country of Origin
India

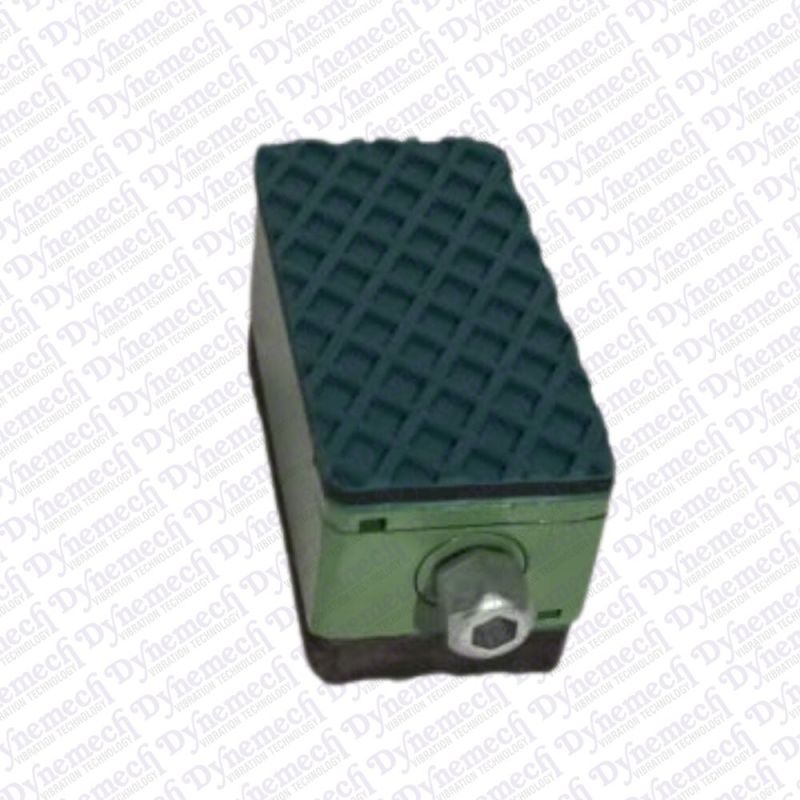

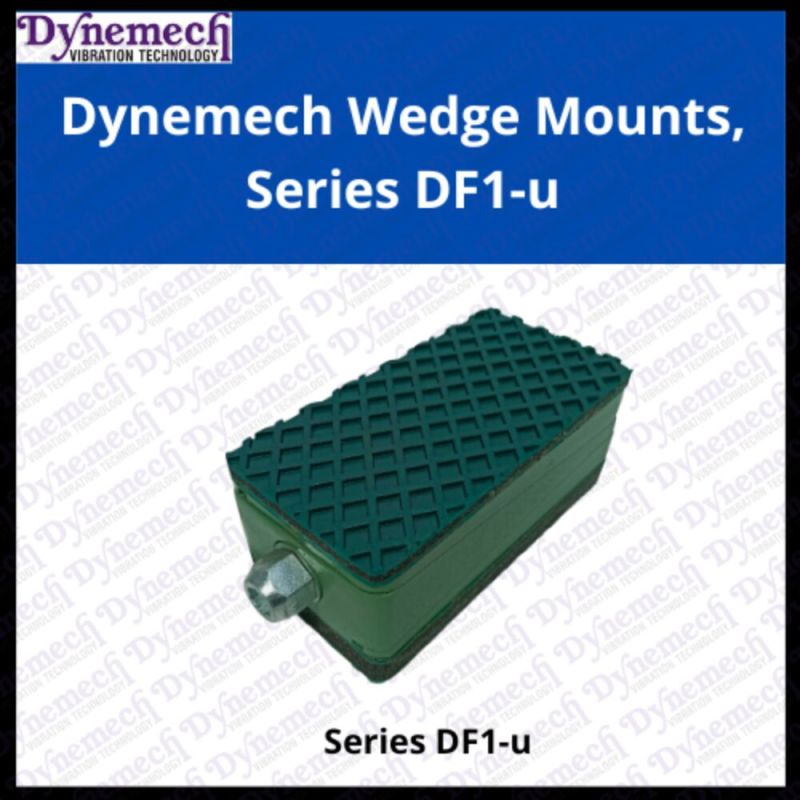

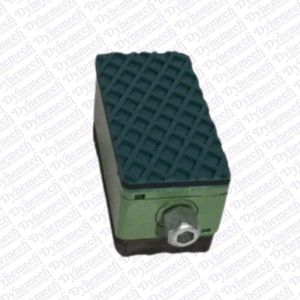

Dynemech wedge mounts are designed for industrial machine tools that require precision leveling. This 3-piece wedge mount has an adjustable bolt which moves the center wedge between top and bottom stationery wedges to provide lift, to the top wedge. Anti-Skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech insulation plates. Applications- Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Note- GST and Freight Charges are not included.
Looking for "Dynemech Anti Vibration Wedge Precision Levelers Series DF1-u" ?
