| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Type | DXO-1,DXO 1 |
| Load | 50,000 To 90,000 |
| Surface Finishing | Painted |
| Click to view more | |
Product Details
Temperature
(-20 T0 +70)
Brand
Dynemech
Material
Stainless Steel
Application
Industrial
Warranty
1
Country of Origin
India,Made In India
Port
Haryana
Payment Terms
Western Union
Packaging Details
Wooden and Corrugated Boxes As Per Customer Requirement.

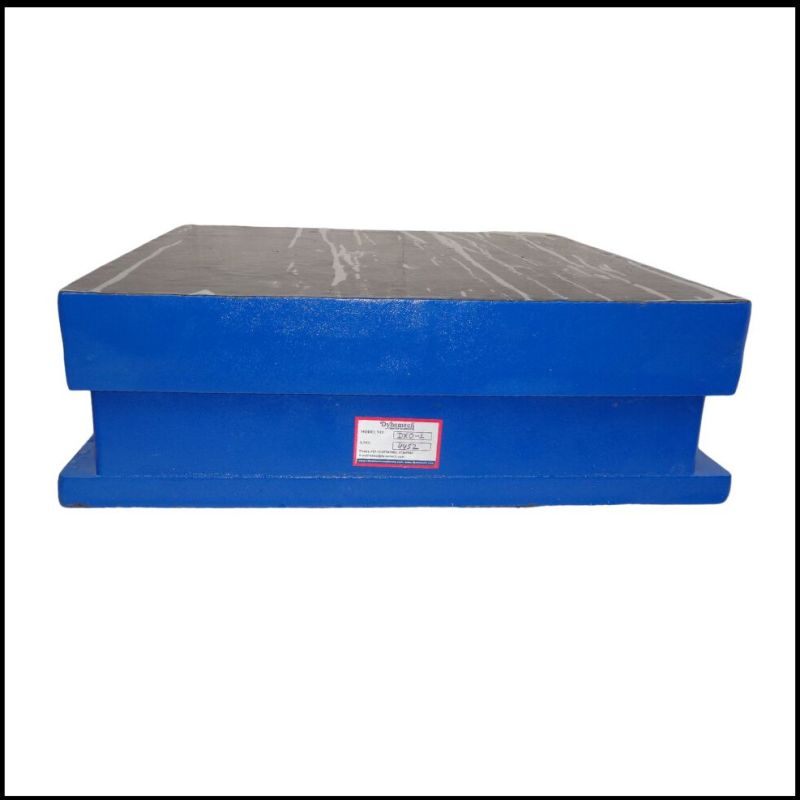

Dynemech DXO Mounts are suitable for very heavy presses. These mounts are also customized to cover the complete base area of the machine. These mounts provides High Shock Isolation.
Model: DXO-1
Length(mm): 550 To 1100 Width(mm): 550 To 550 Height(mm): 190 To 190
Load Capacity (Kg.): 50,000 To 90,000 Natural Frequency (Hz): 7
Working Temp Range °C: (-20 T0 +70)
Weight ( Kg.):190 Kg/pc
Material:Low Carbon Steel Sheet (IS2062)
Colour: Green And Dark Grey Number Of Box:01 Box Dimension:26"X24"X12"
Note- GST and Freight Charges are not included.
