Product Details
Type

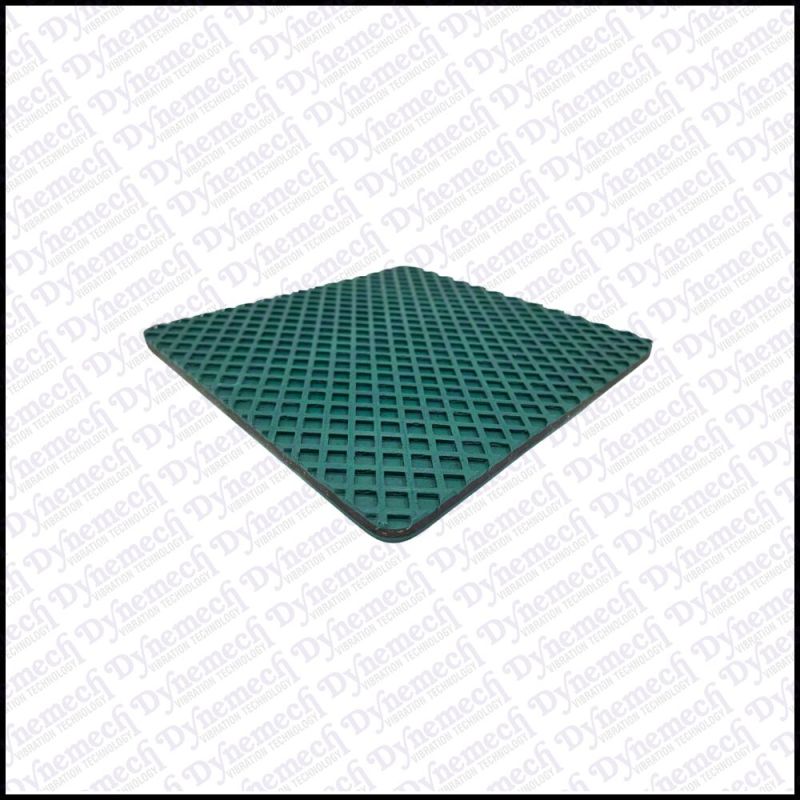

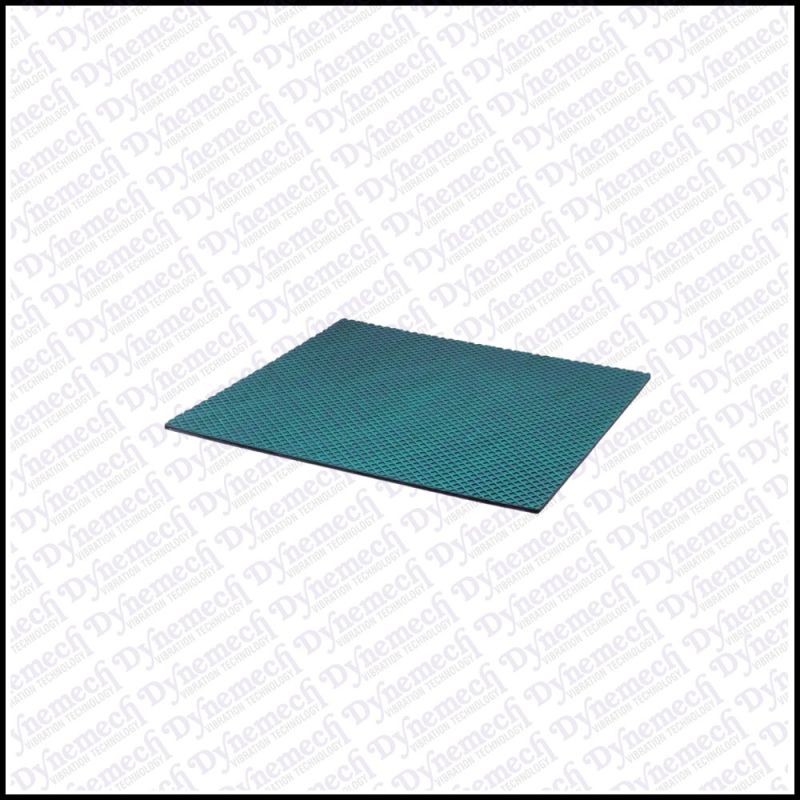

Anti Vibration Machinery Insulation Pad
Series
DA2
Material Available
Nitrile Rubber, Cork, Synthetic Fibre
Thickness (mm)
8
Size (mm)
500x500
Max Withstanding Temperature
-20 To +70
Shore A Hardness
90-92
Coeff. Of Friction
0.8
Load (Kg/sq Cm)
02-10
Dynemech offers ANTI VIBRATION SHEETS made from high grade synthetic composite material. These sheets have different load capacities and are available in different natural frequencies to suit various industrial applications. These are resistant to water, oils, lubricating oils, fuels etc. used in the shop floor. Each sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. These plates will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates. The available thicknesses are 2mm, 8mm, 15mm, 20mm, 25mm and 65mm.
Note- GST and Freight Charges are not included.
